SKU: Z.33.5.DELTA

Z33.5 Gates Delta Classic Z-Section V-Belt (Uniset Match) - Allow 7-10 Days

$15.96 ex VAT
$15.96
ex VAT
Not in stock

Quantity Price Breaks

3 $14.20
5 $13.41
9 $13.25
19 $13.09
49 $12.93
74 $12.77
99 $11.97
199 $11.81
249 $11.65
499 $11.49
999 $11.17
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Z33.5 Gates Delta Classic Z-Section V-Belt (Uniset Match) - Allow 7-10 Days
Z33.5 Gates Delta Classic Z-Section V-Belt (Uniset Match) - Allow 7-10 Days
Z33.5 Gates Delta Classic Z-Section V-Belt (Uniset Match) - Allow 7-10 Days
SKU: Z.33.5.DELTA

Z33.5 Gates Delta Classic Z-Section V-Belt (Uniset Match) - Allow 7-10 Days

$15.96 ex VAT
$15.96
ex VAT

Description

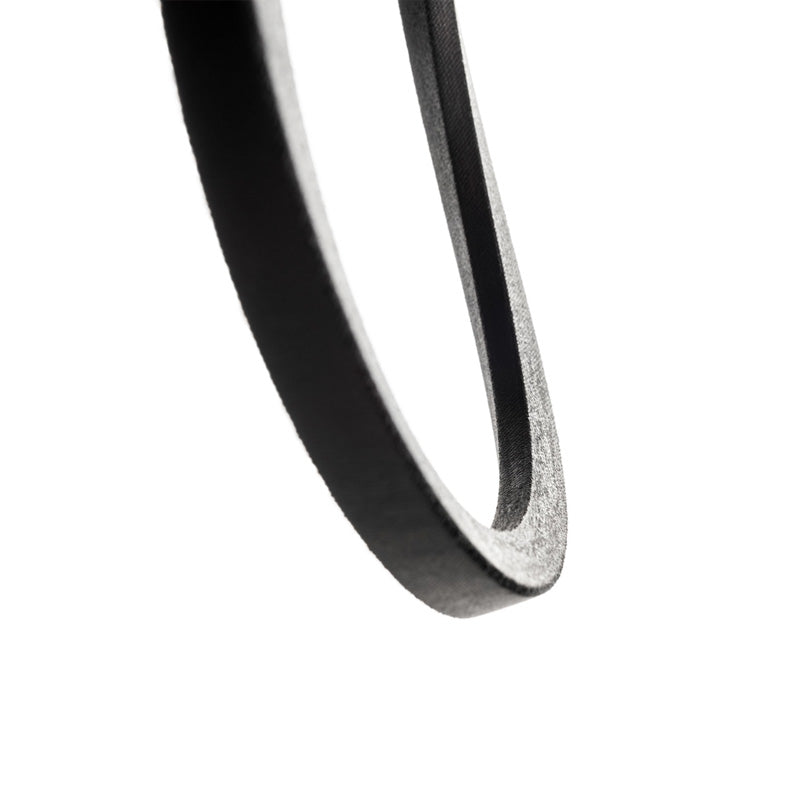

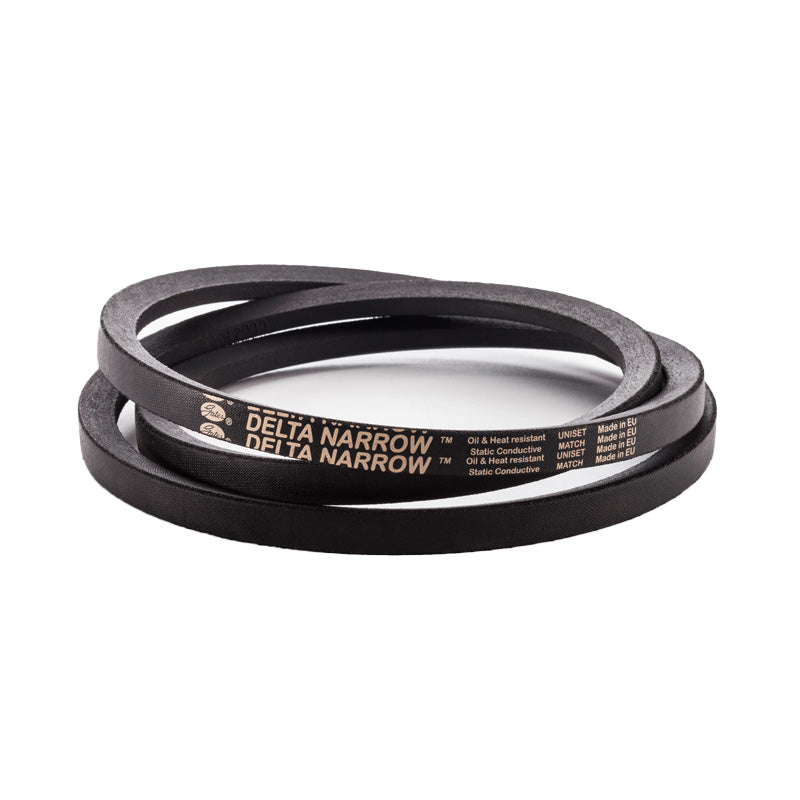

Gates Delta Classic™ Z-Section V-Belt (Uniset Match): The Delta Classic™ V-belts have a classical V-shaped profiles and are built for reliability and durability. For use in all industrial applications requiring narrow section v-belt drives including compressors, pumps, fans, screens, alternators, saws, milling machines etc...
The belts have anti-static properties to ISO 1813 (electrical resistance and antistatic standard) and are REACH, RoHS 2 and ATEX compliant.
High-strength polyester tensile cords provide resistance to flexing forces, fatigue and shock loads.
The belts are oil and moisture resistant and offer good grip and protection against abrasion.
Suitable for use in operating temperatures of -30 deg C to +70 deg C. All sizes in this range meet the Gates UNISET tolerance standards and can be installed without matching. The belts are manufactured in the EU and conform to the requirements of DIN 2215 / ISO 4184 / RMA IP22 / BS 3790.
Benefits: Good belt flexibility, stability and smooth-running operation, antistatic.

Technical

Belt Width Approx = 10mm
Belt Depth Approx = 6mm
Inside Length Approx = 33.5 inch = 851mm
Belt Datum Length Approx = 34.25 inch = 870mm
Belt Length Approx = 35 inch = 889mm
