SKU: UKT213/HA2313

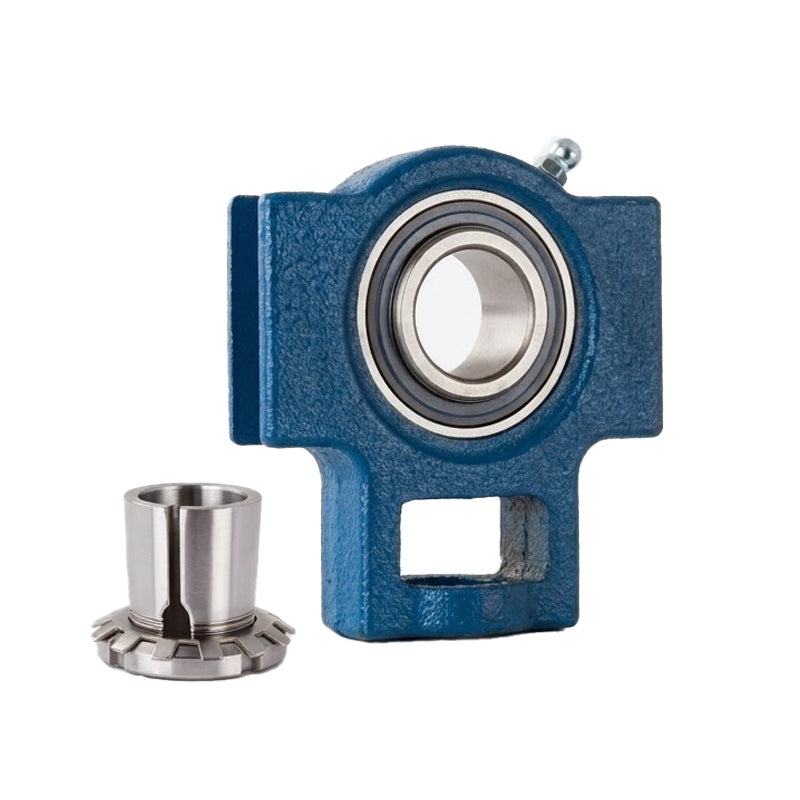

UKT213/HA2313 Imperial Cast Iron Take Up Unit Housing Insert and Adaptor Sleeve Fits 2-3/16 inch Shaft
- Regular price
- $220.47 ex VAT
- Sale price
- $220.47
- Regular price
-
Not in stock
Quantity Price Breaks
3
$196.22
4
$185.19
9
$182.99
19
$180.79
49
$178.58
99
$176.38
499
$165.35
999
$163.15
1999
$160.94
2999
$158.74
4999
$154.33
SKU:
UKT213/HA2313
UKT213/HA2313 Imperial Cast Iron Take Up Unit Housing Insert and Adaptor Sleeve Fits 2-3/16 inch Shaft
- Regular price
- $220.47 ex VAT
- Sale price
- $220.47
- Regular price
-
Description
UKT200 Series Normal Duty Take Up Units with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
Technical
| d | = | 2-3/16 inch |
| o | = | 1-17/64 inch |
| g | = | 53/64 inch |
| p | = | 4-3/8 inch |
| q | = | 2-3/4 inch |
| s | = | 1-39/64 inch |
| b | = | 4-49/64 inch |
| k | = | 1-1/32 inch |
| e | = | 5-15/16 inch |
| a | = | 6-37/64 inch |
| w | = | 8-13/16 inch |
| j | = | 2-3/4 inch |
| l | = | 1-23/32 inch |
| h | = | 5-25/64 inch |
| t | = | 3-1/2 inch |
| B1 | = | 2.559 inch |
| Bearing no | = | UK213 |
| HA2313 | = | Housing no |
| T213 | = | Weight |
| 6.56 kg | = | N/A |
