SKU: UKT211/H2311
UKT211/H2311 Metric Cast Iron Take Up Unit Housing Insert and Adaptor Sleeve Fits 50mm Shaft
- Regular price
- $116.42 ex VAT
- Sale price
- $116.42
- Regular price
-
Not in stock
Quantity Price Breaks
3
$103.61
4
$97.79
9
$96.63
19
$95.46
49
$94.30
99
$93.14
499
$87.32
999
$86.15
1999
$84.99
2999
$83.82
4999
$81.49
SKU:
UKT211/H2311
UKT211/H2311 Metric Cast Iron Take Up Unit Housing Insert and Adaptor Sleeve Fits 50mm Shaft
- Regular price
- $116.42 ex VAT
- Sale price
- $116.42
- Regular price
-
Description

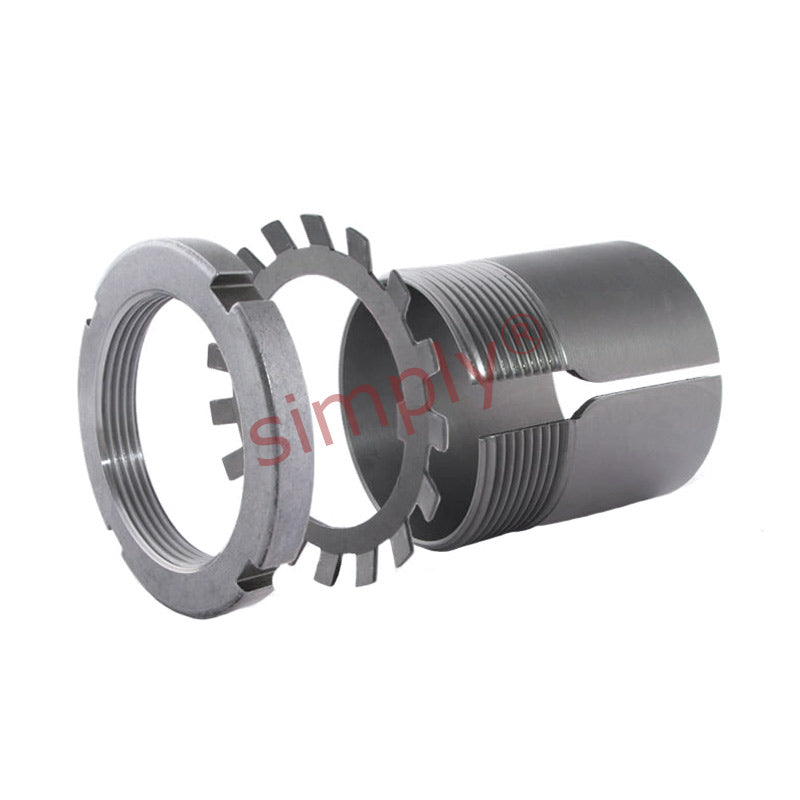

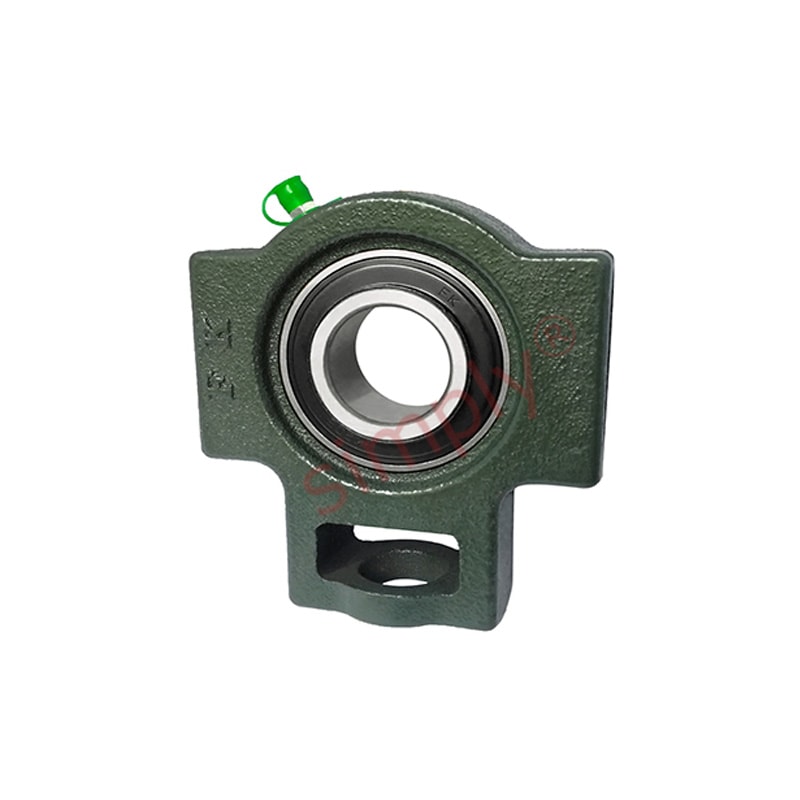

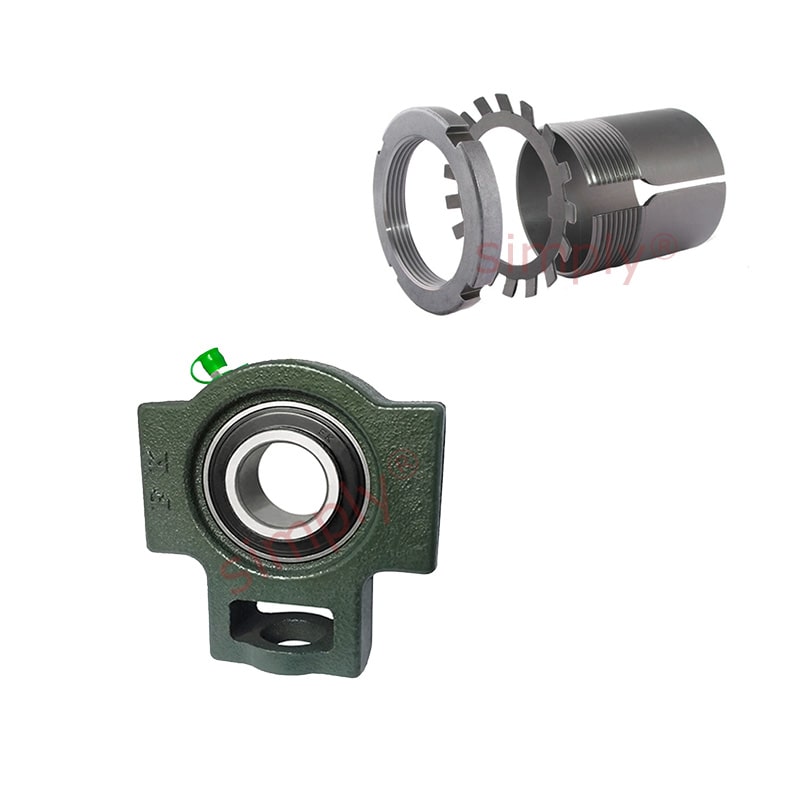

UKT200 Series Normal Duty Take Up Units with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
Technical
| d | = | 50mm |
| o | = | 25mm |
| g | = | 19mm |
| p | = | 102mm |
| q | = | 64mm |
| s | = | 35mm |
| b | = | 95mm |
| k | = | 22mm |
| e | = | 130mm |
| a | = | 146mm |
| w | = | 171mm |
| j | = | 64mm |
| l | = | 38mm |
| h | = | 106mm |
| t | = | 76mm |
| B1 | = | 59mm |
| Bearing no | = | UK211 |
| H2311 | = | Housing no |
| T211 | = | Weight |
| 4.26 kg | = | N/A |
