SKU: UCX.06.TS.CHAL

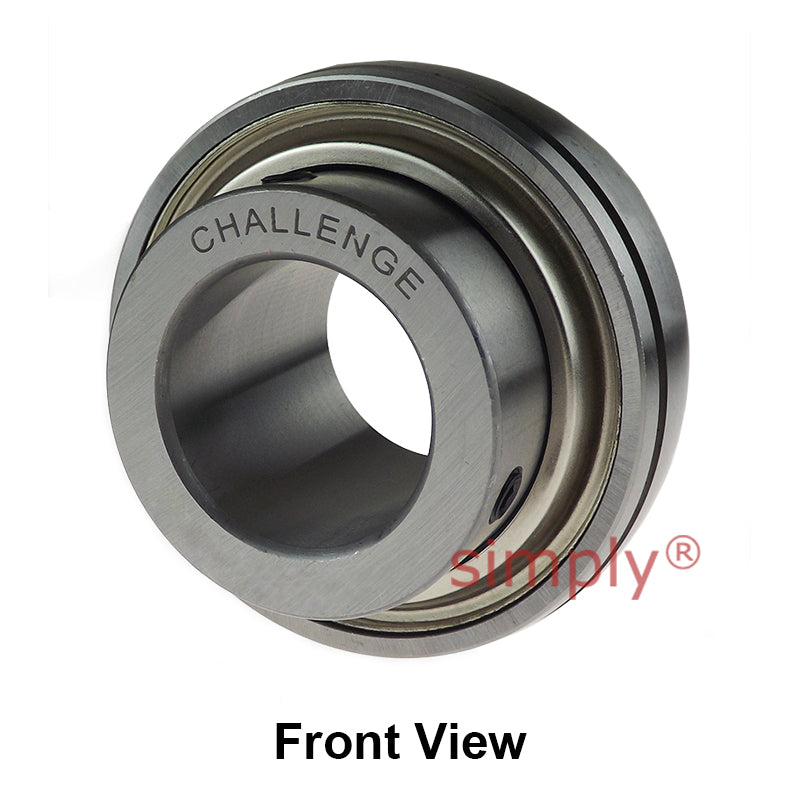

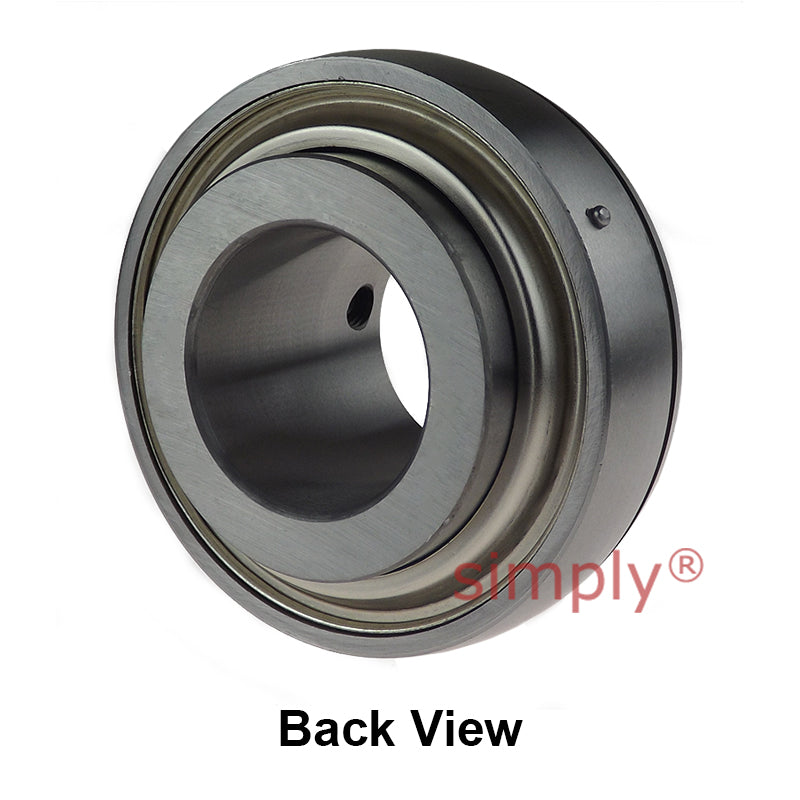

Challenge UCX06 Metric Insert with Grub Screws with 30mm Bore 72mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- $57.51 ex VAT
- Sale price
- $57.51
- Regular price
-
In stock
Quantity Price Breaks
3
$51.18
5
$48.31
9
$47.73
19
$47.16
49
$46.58
74
$46.01
99
$43.13
199
$42.56
249
$41.98
499
$41.41
999
$40.26
SKU:
UCX.06.TS.CHAL
Challenge UCX06 Metric Insert with Grub Screws with 30mm Bore 72mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- $57.51 ex VAT
- Sale price
- $57.51
- Regular price
-
Description
UCX Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. Also available as a complete housing assembly.
Benefits: High tolerance to harsh environments, cost effective bearing, re-lubricatable, grub screw fixing
Technical
| Shaft Diameter d | = | 30mm |
| Outside Diameter D | = | 72mm |
| Overall Width Bi | = | 42.9mm |
| Inner Race Width Be | = | 20mm |
| Back of Bearing to Centre Line n | = | 17.5mm |
| Front of Bearing to Centre Line m | = | 25.4mm |
| Dimension G | = | 6.5mm |
| Grub Screws x 2 | = | M6x0.75mm |
| Load Rating (Dynamic) | = | 2010kg |
| Load Rating (Static) | = | 1390kg |
| Max Speed | = | 2800 rev/min |
| Working Temperature | = | -30& |
| deg | = | C to +120& |
| deg | = | C |
