SKU: UCT326

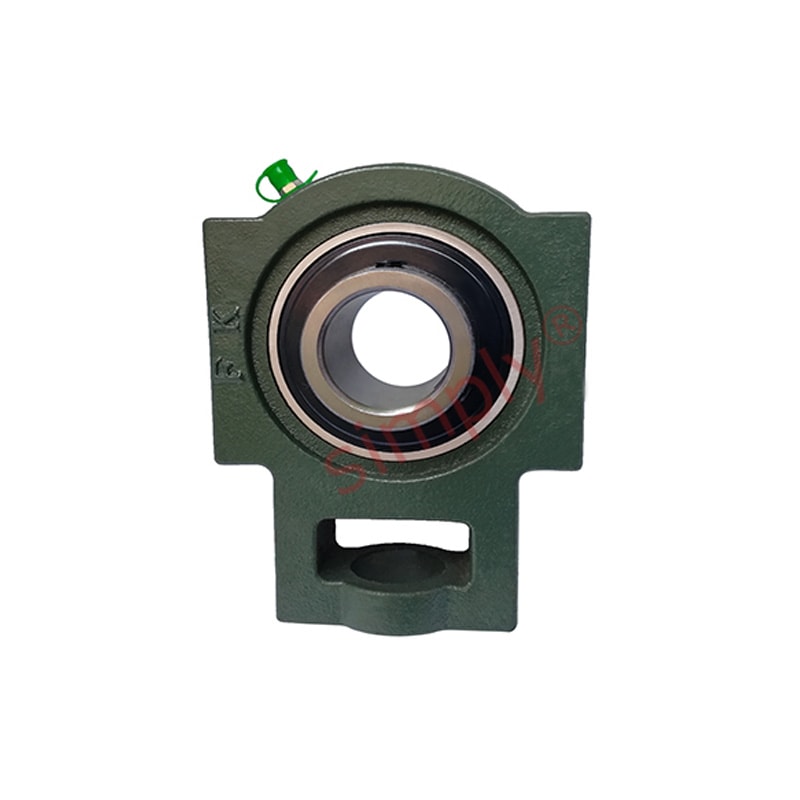

UCT326 Metric Cast Iron Take Up Unit Housing with 130mm Bore Insert
- Regular price
- $1,803.56 ex VAT
- Sale price
- $1,803.56
- Regular price
-
Not in stock
Quantity Price Breaks
3
$1,605.17
4
$1,514.99
9
$1,496.95
19
$1,478.92
49
$1,460.88
99
$1,442.85
499
$1,352.67
999
$1,334.63
1999
$1,316.60
2999
$1,298.56
4999
$1,262.49
SKU:
UCT326
UCT326 Metric Cast Iron Take Up Unit Housing with 130mm Bore Insert
- Regular price
- $1,803.56 ex VAT
- Sale price
- $1,803.56
- Regular price
-
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| d | = | 130mm |
| o | = | 65mm |
| g | = | 45mm |
| p | = | 220mm |
| q | = | 150mm |
| s | = | 75mm |
| b | = | 240mm |
| k | = | 50mm |
| e | = | 350mm |
| a | = | 385mm |
| w | = | 465mm |
| j | = | 150mm |
| l | = | 100mm |
| h | = | 285mm |
| B | = | 135mm |
| n | = | 54mm |
| Bearing no | = | UC326 |
| Housing no | = | T326 |
| Weight | = | 68.4 kg |
