SKU: UCT.217

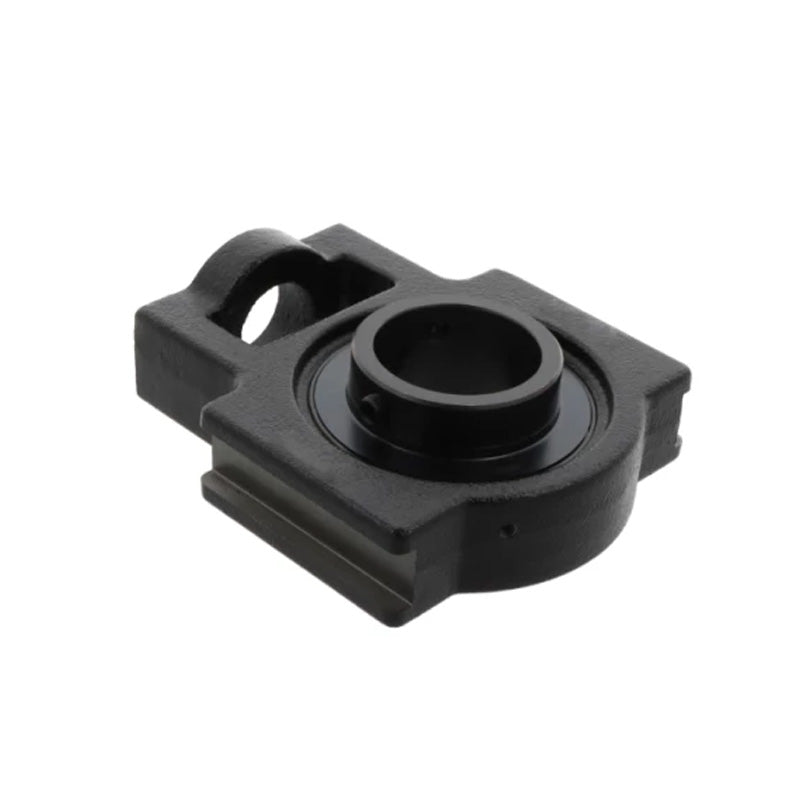

UCT217 Metric Series Cast Iron Take Up Unit Housing with 85mm Bore Bearing Unit
- Regular price
- $375.86 ex VAT
- Sale price
- $375.86
- Regular price
-
Not in stock
Quantity Price Breaks
3
$334.52
4
$315.72
9
$311.96
19
$308.21
49
$304.45
99
$300.69
499
$281.90
999
$278.14
1999
$274.38
2999
$270.62
4999
$263.10
SKU:
UCT.217
UCT217 Metric Series Cast Iron Take Up Unit Housing with 85mm Bore Bearing Unit
- Regular price
- $375.86 ex VAT
- Sale price
- $375.86
- Regular price
-
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| d | = | 85mm |
| o | = | 38mm |
| g | = | 29mm |
| p | = | 124mm |
| q | = | 73mm |
| s | = | 48mm |
| b | = | 157mm |
| k | = | 30mm |
| e | = | 173mm |
| a | = | 198mm |
| W | = | 260mm |
| j | = | 73mm |
| L | = | 54mm |
| h | = | 162mm |
| Bi | = | 85.7mm |
| n | = | 34.1mm |
| Weight | = | 11.1 kg |
| Dynamic load | = | 6600 kgf |
| Static load | = | 5320 kgf |
