SKU: UCT.216

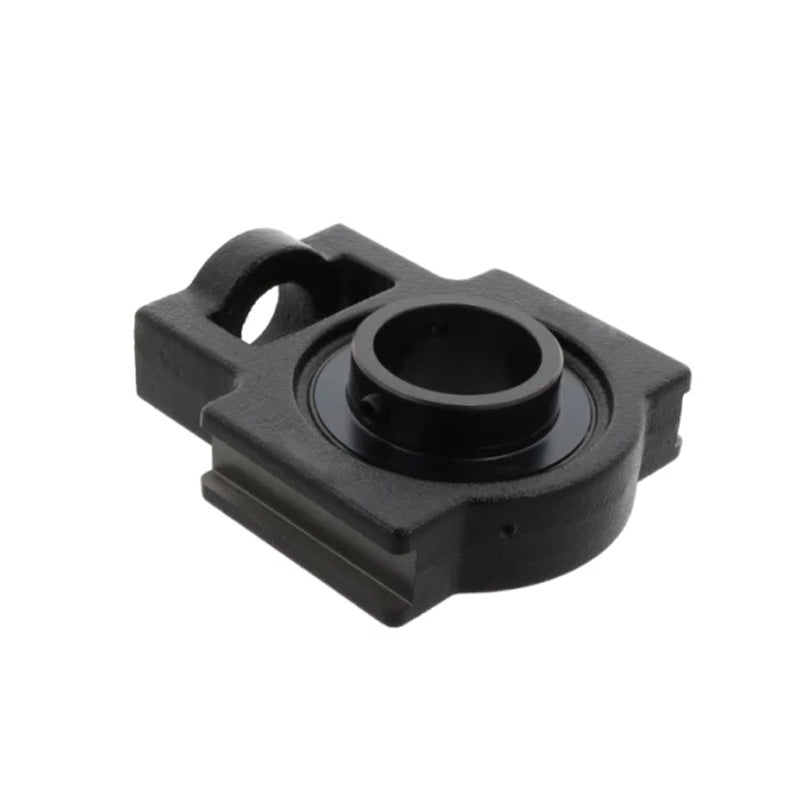

UCT216 Metric Series Cast Iron Take Up Unit Housing with 80mm Bore Bearing Unit
- Regular price
- $311.59 ex VAT
- Sale price
- $311.59
- Regular price
-
Not in stock
Quantity Price Breaks
3
$277.32
4
$261.74
9
$258.62
19
$255.50
49
$252.39
99
$249.27
499
$233.69
999
$230.58
1999
$227.46
2999
$224.34
4999
$218.11
SKU:
UCT.216
UCT216 Metric Series Cast Iron Take Up Unit Housing with 80mm Bore Bearing Unit
- Regular price
- $311.59 ex VAT
- Sale price
- $311.59
- Regular price
-
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| d | = | 80mm |
| o | = | 32mm |
| g | = | 21mm |
| p | = | 111mm |
| q | = | 70mm |
| s | = | 41mm |
| b | = | 121mm |
| k | = | 26mm |
| e | = | 165mm |
| a | = | 184mm |
| W | = | 235mm |
| j | = | 70mm |
| L | = | 51mm |
| h | = | 140mm |
| Bi | = | 82.6mm |
| n | = | 33.3mm |
| Weight | = | 8.3 kg |
| Dynamic load | = | 5700 kgf |
| Static load | = | 4550 kgf |
