SKU: UCT.212

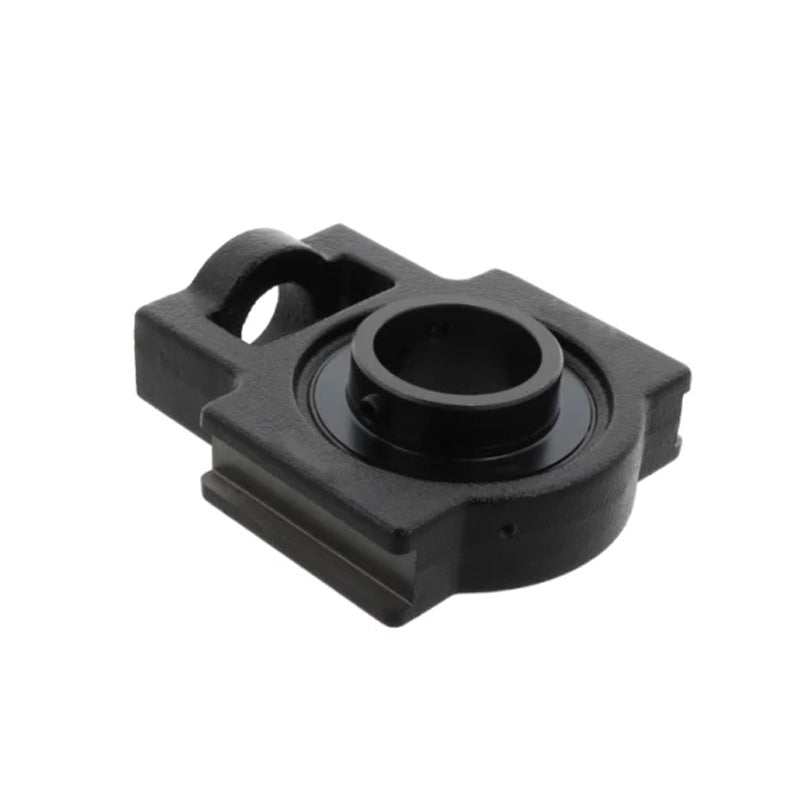

UCT212 Metric Series Cast Iron Take Up Unit Housing with 60mm Bore Bearing Unit
- Regular price
- $102.88 ex VAT
- Sale price
- $102.88
- Regular price
-
In stock
Quantity Price Breaks
3
$91.56
4
$86.42
9
$85.39
19
$84.36
49
$83.33
99
$82.30
499
$77.16
999
$76.13
1999
$75.10
2999
$74.07
4999
$72.02
SKU:
UCT.212
UCT212 Metric Series Cast Iron Take Up Unit Housing with 60mm Bore Bearing Unit
- Regular price
- $102.88 ex VAT
- Sale price
- $102.88
- Regular price
-
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| d | = | 60mm |
| o | = | 32mm |
| g | = | 19mm |
| p | = | 102mm |
| q | = | 64mm |
| s | = | 35mm |
| b | = | 102mm |
| k | = | 22mm |
| e | = | 130mm |
| a | = | 146mm |
| W | = | 194mm |
| j | = | 64mm |
| L | = | 46mm |
| h | = | 119mm |
| Bi | = | 65.1mm |
| n | = | 25.4mm |
| Weight | = | 5.0 kg |
| Dynamic load | = | 4100 kgf |
| Static load | = | 3150 kgf |
| Rec max speed | = | 2800 rpm |
