SKU: UCT.211

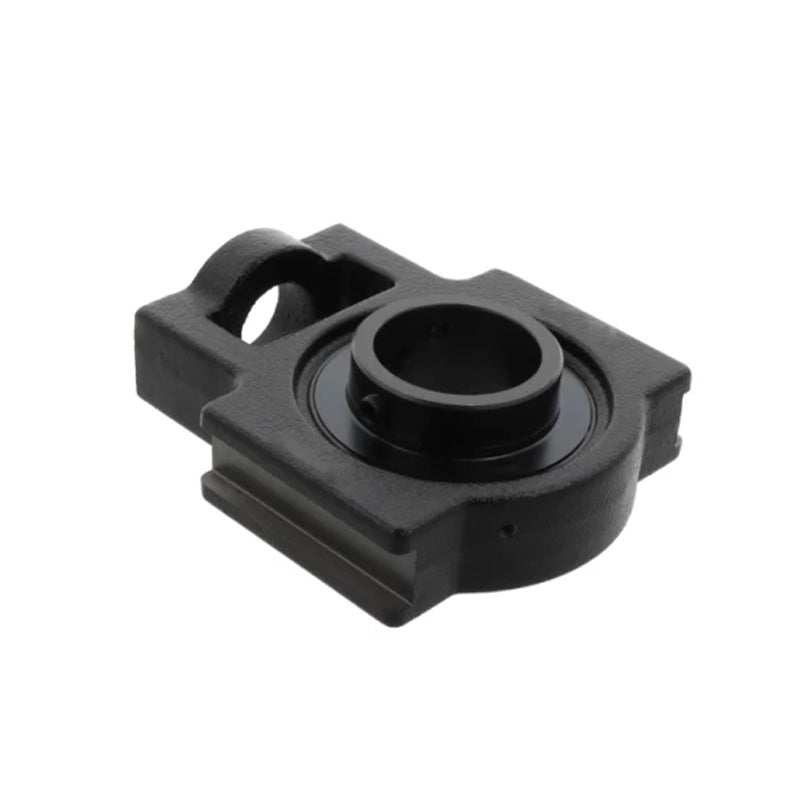

UCT211 Metric Series Cast Iron Take Up Unit Housing with 55mm Bore Bearing Unit
- Regular price
- $80.52 ex VAT
- Sale price
- $80.52
- Regular price
-
Not in stock
Quantity Price Breaks
3
$71.66
4
$67.64
9
$66.83
19
$66.03
49
$65.22
99
$64.42
499
$60.39
999
$59.58
1999
$58.78
2999
$57.97
4999
$56.36
SKU:
UCT.211
UCT211 Metric Series Cast Iron Take Up Unit Housing with 55mm Bore Bearing Unit
- Regular price
- $80.52 ex VAT
- Sale price
- $80.52
- Regular price
-
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| d | = | 55mm |
| o | = | 25mm |
| g | = | 19mm |
| p | = | 102mm |
| q | = | 64mm |
| s | = | 35mm |
| b | = | 95mm |
| k | = | 22mm |
| e | = | 130mm |
| a | = | 146mm |
| W | = | 171mm |
| j | = | 64mm |
| L | = | 41mm |
| h | = | 106mm |
| Bi | = | 55.6mm |
| n | = | 22.2mm |
| Weight | = | 4.0 kg |
| Dynamic load | = | 3400 kgf |
| Static load | = | 2550 kgf |
| Rec max speed | = | 3100 rpm |
