SKU: UCT.209-27

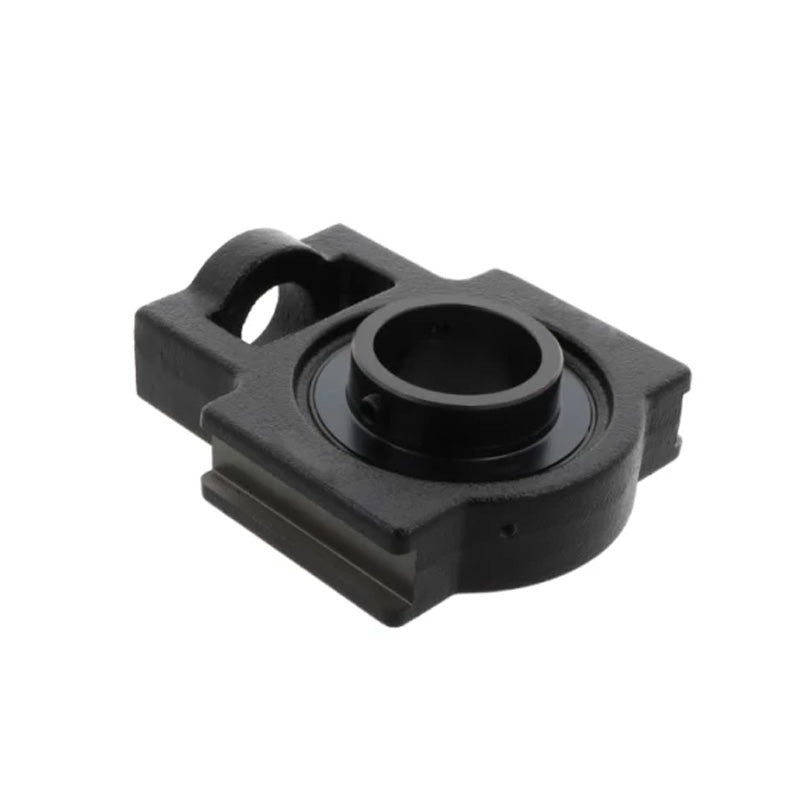

UCT209-27 Metric Series Cast Iron Take Up Unit Housing with 1-11/16 inch Bore Bearing Unit
- Regular price
- $54.74 ex VAT
- Sale price
- $54.74
- Regular price
-
In stock
Quantity Price Breaks
3
$48.72
4
$45.98
9
$45.43
19
$44.89
49
$44.34
99
$43.79
499
$41.06
999
$40.51
1999
$39.96
2999
$39.41
4999
$38.32
SKU:
UCT.209-27
UCT209-27 Metric Series Cast Iron Take Up Unit Housing with 1-11/16 inch Bore Bearing Unit
- Regular price
- $54.74 ex VAT
- Sale price
- $54.74
- Regular price
-
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| d | = | 1-11/16 inch |
| o | = | 19mm |
| g | = | 16mm |
| p | = | 83mm |
| q | = | 49mm |
| s | = | 29mm |
| b | = | 83mm |
| k | = | 16mm |
| e | = | 102mm |
| a | = | 117mm |
| W | = | 144mm |
| j | = | 49mm |
| L | = | 35mm |
| h | = | 87mm |
| Bi | = | 49.2mm |
| n | = | 19mm |
| Weight | = | 2.4 kg |
| Dynamic load | = | 2560 kgf |
| Static load | = | 1810 kgf |
