SKU: UCT.209

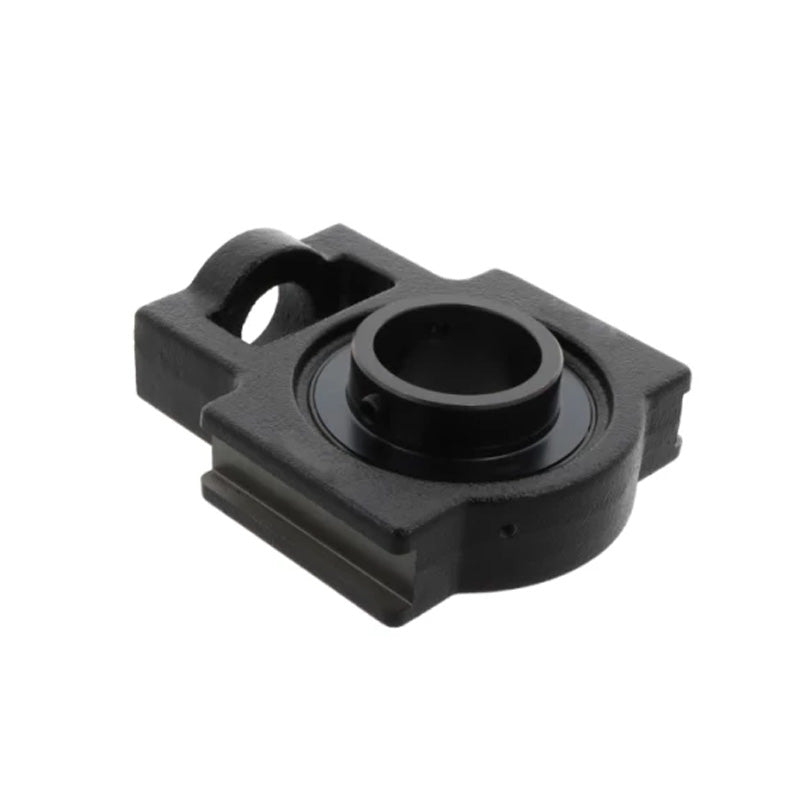

UCT209 Metric Series Cast Iron Take Up Unit Housing with 45mm Bore Bearing Unit
- Regular price
- $53.14 ex VAT
- Sale price
- $53.14
- Regular price
-
Not in stock
Quantity Price Breaks
3
$47.29
4
$44.64
9
$44.11
19
$43.57
49
$43.04
99
$42.51
499
$39.86
999
$39.32
1999
$38.79
2999
$38.26
4999
$37.20
SKU:
UCT.209
UCT209 Metric Series Cast Iron Take Up Unit Housing with 45mm Bore Bearing Unit
- Regular price
- $53.14 ex VAT
- Sale price
- $53.14
- Regular price
-
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| d | = | 45mm |
| o | = | 19mm |
| g | = | 16mm |
| p | = | 83mm |
| q | = | 49mm |
| s | = | 29mm |
| b | = | 83mm |
| k | = | 16mm |
| e | = | 102mm |
| a | = | 117mm |
| W | = | 144mm |
| j | = | 49mm |
| L | = | 35mm |
| h | = | 87mm |
| Bi | = | 49.2mm |
| n | = | 19mm |
| Weight | = | 2.4 kg |
| Dynamic load | = | 2560 kgf |
| Static load | = | 1810 kgf |
| Rec max speed | = | 3700 rpm |
