SKU: UCT.208-24

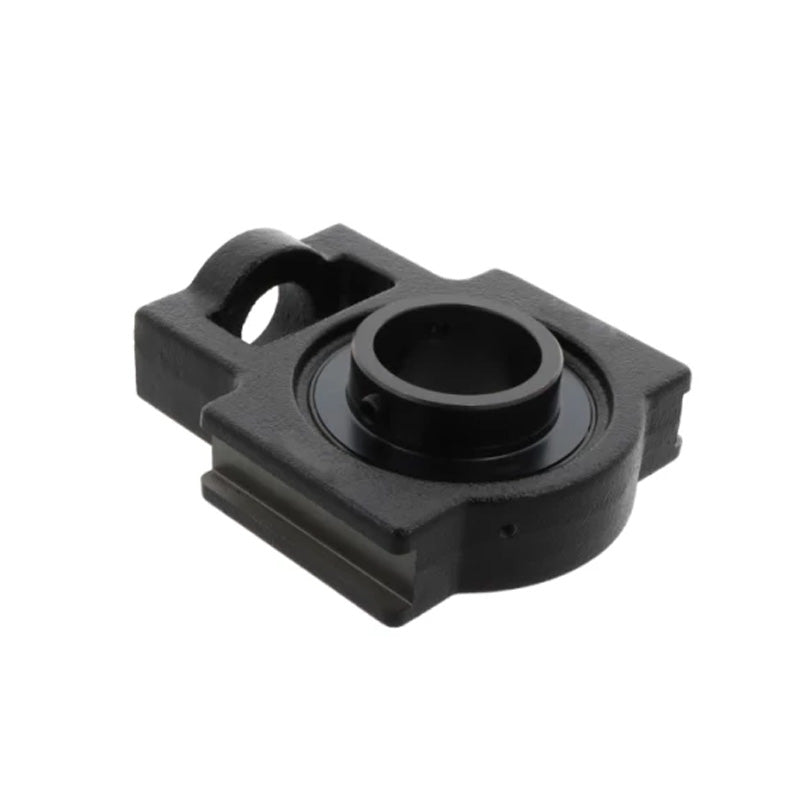

UCT208-24 Metric Series Cast Iron Take Up Unit Housing with 1-1/2 inch Bore Bearing Unit
- Regular price
- $48.08 ex VAT
- Sale price
- $48.08
- Regular price
-
In stock
Quantity Price Breaks
3
$42.79
4
$40.39
9
$39.91
19
$39.43
49
$38.94
99
$38.46
499
$36.06
999
$35.58
1999
$35.10
2999
$34.62
4999
$33.66
SKU:
UCT.208-24
UCT208-24 Metric Series Cast Iron Take Up Unit Housing with 1-1/2 inch Bore Bearing Unit
- Regular price
- $48.08 ex VAT
- Sale price
- $48.08
- Regular price
-
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| d | = | 1-1/2 inch |
| o | = | 19mm |
| g | = | 16mm |
| p | = | 83mm |
| q | = | 49mm |
| s | = | 29mm |
| b | = | 83mm |
| k | = | 16mm |
| e | = | 102mm |
| a | = | 114mm |
| W | = | 144mm |
| j | = | 49mm |
| L | = | 33mm |
| h | = | 88mm |
| Bi | = | 49.2mm |
| n | = | 19mm |
| Weight | = | 2.4 kg |
| Dynamic load | = | 2560 kgf |
| Static load | = | 1810 kgf |
| Rec max speed | = | 4000 rpm |
