SKU: UCT.206

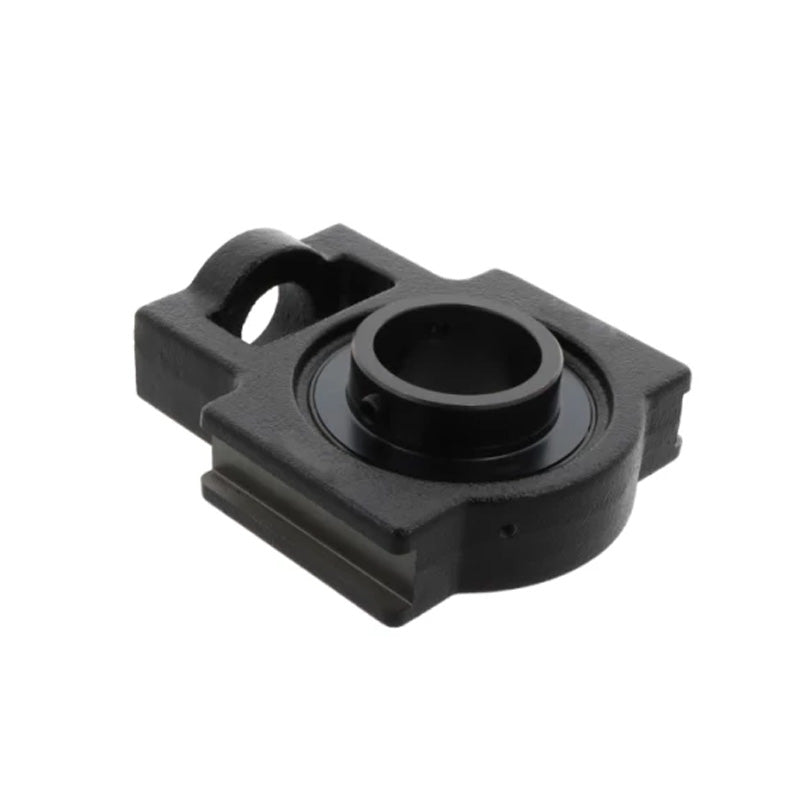

UCT206 Metric Series Cast Iron Take Up Unit Housing with 30mm Bore Bearing Unit
- Regular price
- $28.62 ex VAT
- Sale price
- $28.62
- Regular price
-
In stock
Quantity Price Breaks
3
$25.47
4
$24.04
9
$23.75
19
$23.47
49
$23.18
99
$22.90
499
$21.47
999
$21.18
1999
$20.89
2999
$20.61
4999
$20.03
SKU:
UCT.206
UCT206 Metric Series Cast Iron Take Up Unit Housing with 30mm Bore Bearing Unit
- Regular price
- $28.62 ex VAT
- Sale price
- $28.62
- Regular price
-
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| d | = | 30mm |
| o | = | 16mm |
| g | = | 10mm |
| p | = | 56mm |
| q | = | 37mm |
| s | = | 22mm |
| b | = | 57mm |
| k | = | 12mm |
| e | = | 89mm |
| a | = | 102mm |
| W | = | 113mm |
| j | = | 37mm |
| L | = | 28mm |
| h | = | 70mm |
| Bi | = | 38.1mm |
| n | = | 15.9mm |
| Weight | = | 1.3 kg |
| Dynamic load | = | 1520 kgf |
| Static load | = | 1020 kgf |
| Rec max speed | = | 5300 rpm |
