SKU: UCT.202

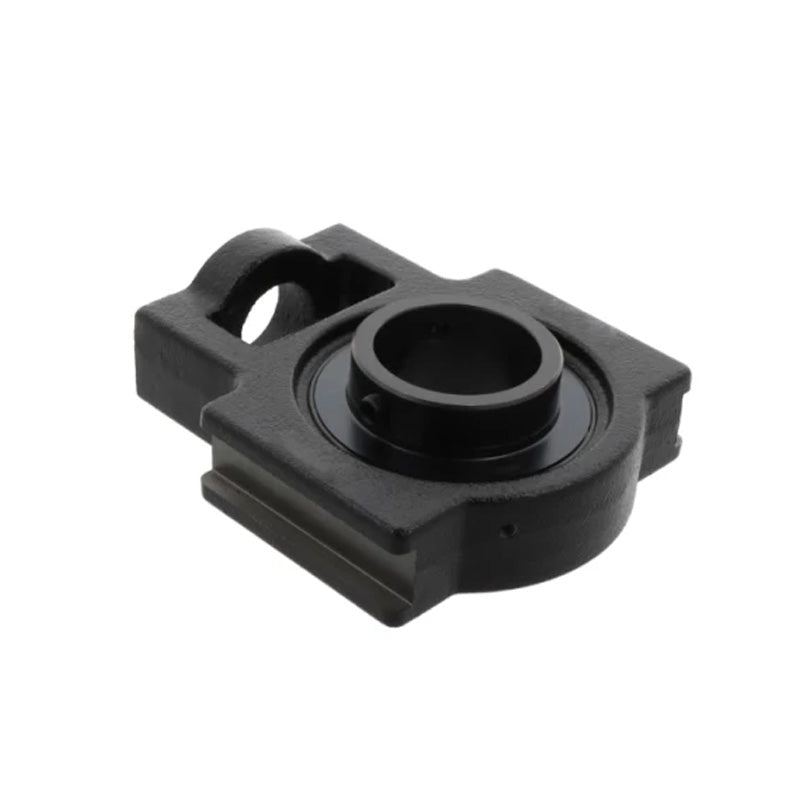

UCT202 Metric Series Cast Iron Take Up Unit Housing with 15mm Bore Bearing Unit
- Regular price
- $28.49 ex VAT
- Sale price
- $28.49
- Regular price
-
In stock
Quantity Price Breaks
3
$25.36
4
$23.93
9
$23.65
19
$23.36
49
$23.08
99
$22.79
499
$21.37
999
$21.08
1999
$20.80
2999
$20.51
4999
$19.94
SKU:
UCT.202
UCT202 Metric Series Cast Iron Take Up Unit Housing with 15mm Bore Bearing Unit
- Regular price
- $28.49 ex VAT
- Sale price
- $28.49
- Regular price
-
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| d | = | 15mm |
| o | = | 16mm |
| g | = | 10mm |
| p | = | 51mm |
| q | = | 32mm |
| s | = | 19mm |
| b | = | 51mm |
| k | = | 12mm |
| e | = | 76mm |
| a | = | 89mm |
| W | = | 94mm |
| j | = | 32mm |
| L | = | 21mm |
| h | = | 61mm |
| Bi | = | 31mm |
| n | = | 12.7mm |
| Weight | = | 0.79 kg |
| Dynamic load | = | 1000 kgf |
| Static load | = | 630 kgf |
