SKU: UCPX.15

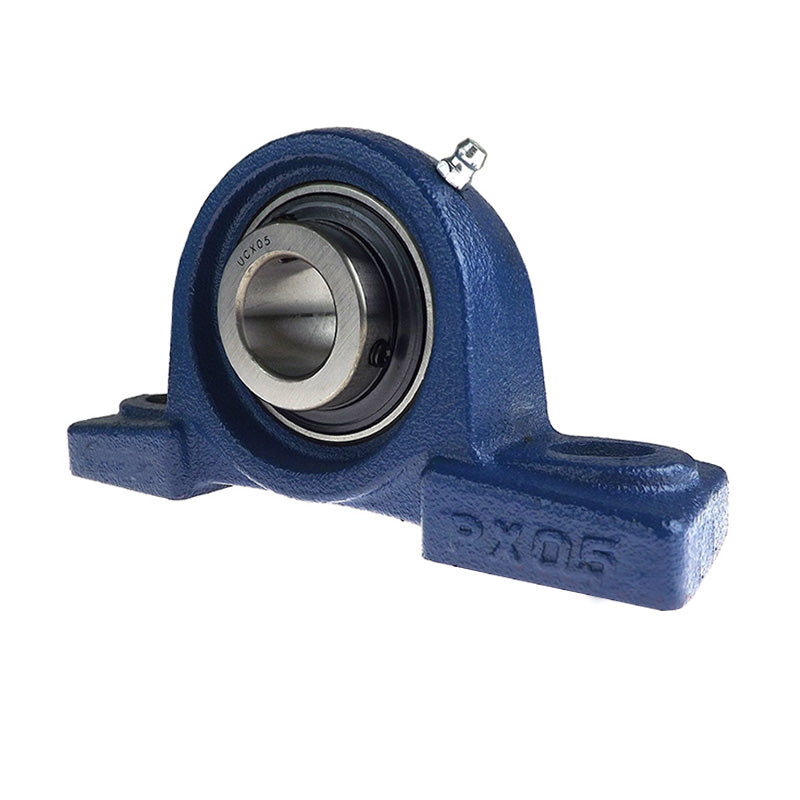

UCPX15 Metric Two Bolt Cast Iron Pillow / Plummer Block Housing with 75mm Bore Insert
- Regular price
- $275.90 ex VAT
- Sale price
- $275.90
- Regular price
-
In stock
Quantity Price Breaks
3
$245.55
4
$231.76
9
$229.00
19
$226.24
49
$223.48
99
$220.72
499
$206.93
999
$204.17
1999
$201.41
2999
$198.65
4999
$193.13
SKU:
UCPX.15
UCPX15 Metric Two Bolt Cast Iron Pillow / Plummer Block Housing with 75mm Bore Insert
- Regular price
- $275.90 ex VAT
- Sale price
- $275.90
- Regular price
-
Description
|
UCPX or MP Series Plummer / Pillow Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| d | = | 75mm |
| h | = | 88.9mm |
| a | = | 330mm |
| e | = | 229mm |
| b | = | 89mm |
| s2 | = | 51mm |
| s1 | = | 27mm |
| g | = | 35mm |
| w | = | 175mm |
| B1 | = | 82.6mm |
| n | = | 33.3mm |
| Bolt Size | = | M22 |
| Weight | = | 11.1 kg |
| Dynamic load | = | 5700 kgf |
| Static load | = | 4550 kgf |
