SKU: UCPX.05-16

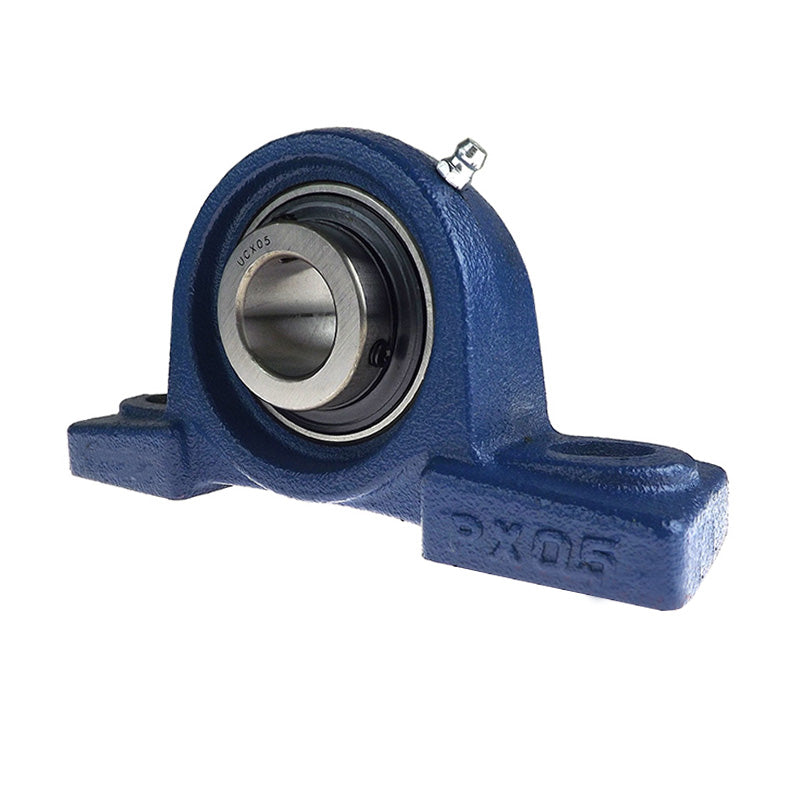

UCPX05-16 Imperial Two Bolt Cast Iron Pillow / Plummer Block Housing with 1 inch Bore Insert
- Regular price
- $31.62 ex VAT
- Sale price
- $31.62
- Regular price
-
In stock
Quantity Price Breaks
3
$28.14
4
$26.56
9
$26.24
19
$25.93
49
$25.61
99
$25.30
499
$23.72
999
$23.40
1999
$23.08
2999
$22.77
4999
$22.13
SKU:
UCPX.05-16
UCPX05-16 Imperial Two Bolt Cast Iron Pillow / Plummer Block Housing with 1 inch Bore Insert
- Regular price
- $31.62 ex VAT
- Sale price
- $31.62
- Regular price
-
Description
|
UCPX or MP Series Plummer / Pillow Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| d | = | 1 inch |
| h | = | 44.4mm |
| a | = | 159mm |
| e | = | 119mm |
| b | = | 51mm |
| s2 | = | 25mm |
| s1 | = | 17mm |
| g | = | 18mm |
| w | = | 85mm |
| B1 | = | 38.1mm |
| n | = | 15.9mm |
| Bolt Size | = | M14 |
| Weight | = | 1.5 kg |
| Dynamic load | = | 1520 kgf |
| Static load | = | 1020 kgf |
| Rec max speed | = | 5300 rpm |
