SKU: UCP.216

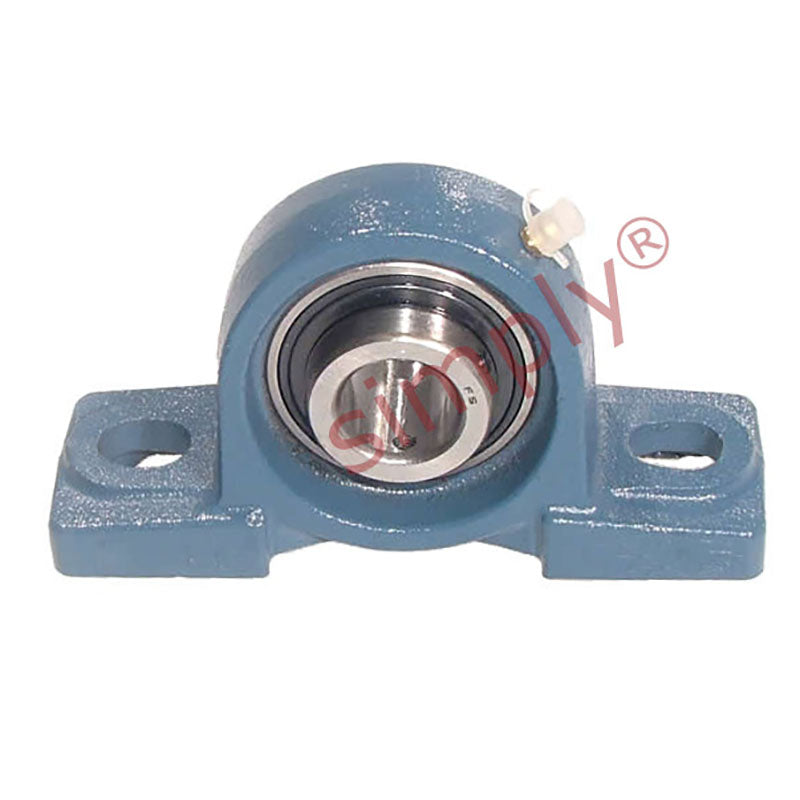

UCP216 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 80mm Bore Insert
- Regular price
- $165.21 ex VAT
- Sale price
- $165.21
- Regular price
-
In stock
Quantity Price Breaks
3
$147.04
4
$138.78
9
$137.12
19
$135.47
49
$133.82
99
$132.17
499
$123.91
999
$122.26
1999
$120.60
2999
$118.95
4999
$115.65
SKU:
UCP.216
UCP216 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 80mm Bore Insert
- Regular price
- $165.21 ex VAT
- Sale price
- $165.21
- Regular price
-
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| d | = | 80mm |
| h | = | 88.9mm |
| a | = | 292mm |
| e | = | 232mm |
| b | = | 78mm |
| s2 | = | 31mm |
| s1 | = | 25mm |
| g | = | 30mm |
| w | = | 175mm |
| B1 | = | 82.6mm |
| n | = | 33.3mm |
| Bolt Size | = | M20 |
| Weight | = | 9 kg |
| Dynamic load | = | 5700 kgf |
| Static load | = | 4550 kgf |
| Rec max speed | = | 2150 rpm |
