SKU: UCP.212-36

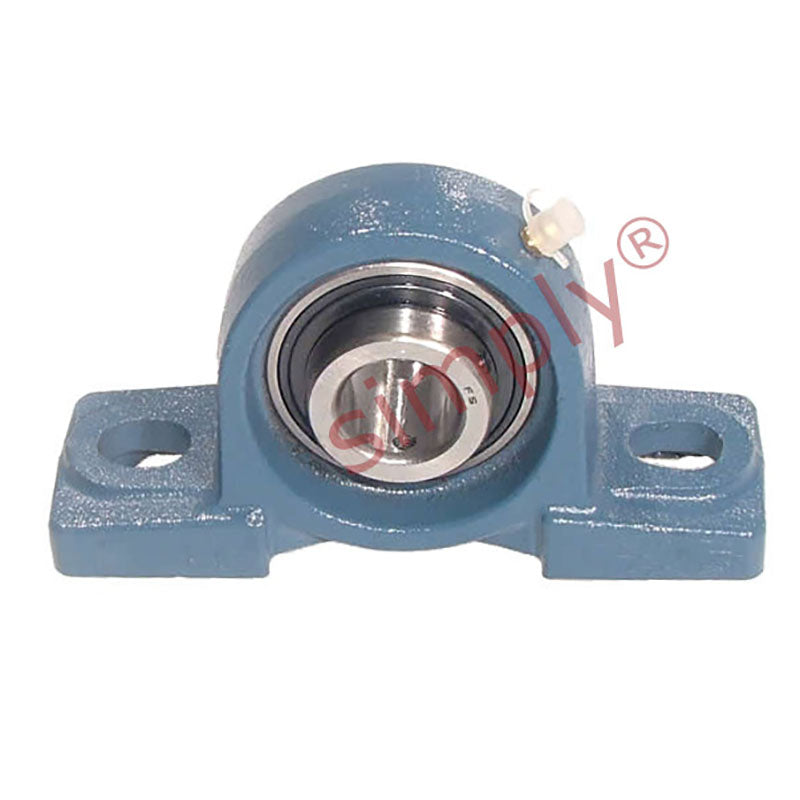

UCP212-36 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-1/4 inch Bore Insert
- Regular price
- $103.17 ex VAT
- Sale price
- $103.17
- Regular price
-
In stock
Quantity Price Breaks
3
$91.82
4
$86.66
9
$85.63
19
$84.60
49
$83.57
99
$82.54
499
$77.38
999
$76.35
1999
$75.31
2999
$74.28
4999
$72.22
SKU:
UCP.212-36
UCP212-36 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-1/4 inch Bore Insert
- Regular price
- $103.17 ex VAT
- Sale price
- $103.17
- Regular price
-
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| d | = | 2-1/4 inch |
| h | = | 69.8mm |
| a | = | 241mm |
| e | = | 184mm |
| b | = | 70mm |
| s2 | = | 25mm |
| s1 | = | 20mm |
| g | = | 25mm |
| w | = | 137mm |
| B1 | = | 65.1mm |
| n | = | 25.4mm |
| Bolt Size | = | M16 |
| Weight | = | 4.8 kg |
| Dynamic load | = | 4100 kgf |
| Static load | = | 3150 kgf |
| Rec max speed | = | 2800 rpm |
