SKU: UCP.211-34

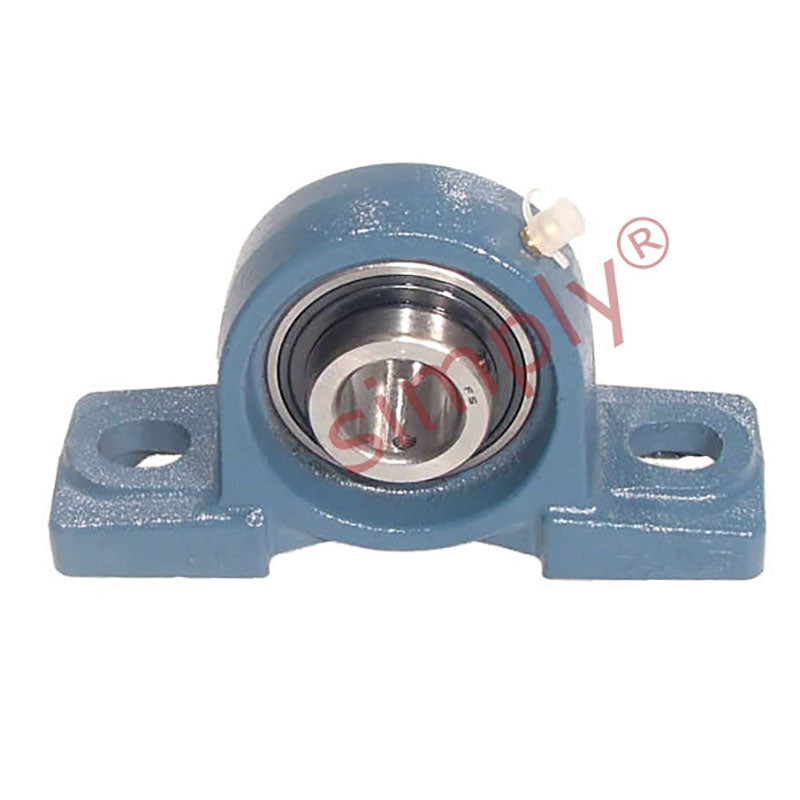

UCP211-34 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-1/8 inch Bore Insert
- Regular price
- $74.20 ex VAT
- Sale price
- $74.20
- Regular price
-
In stock
Quantity Price Breaks
3
$66.04
4
$62.33
9
$61.59
19
$60.84
49
$60.10
99
$59.36
499
$55.65
999
$54.91
1999
$54.17
2999
$53.42
4999
$51.94
SKU:
UCP.211-34
UCP211-34 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-1/8 inch Bore Insert
- Regular price
- $74.20 ex VAT
- Sale price
- $74.20
- Regular price
-
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| d | = | 2-1/8 inch |
| h | = | 63.5mm |
| a | = | 219mm |
| e | = | 171mm |
| b | = | 60mm |
| s2 | = | 25mm |
| s1 | = | 20mm |
| g | = | 22mm |
| w | = | 126mm |
| B1 | = | 55.6mm |
| n | = | 22.2mm |
| Bolt Size | = | M16 |
| Weight | = | 3.4 kg |
| Dynamic load | = | 3400 kgf |
| Static load | = | 2550 kgf |
