SKU: UCP.203-11

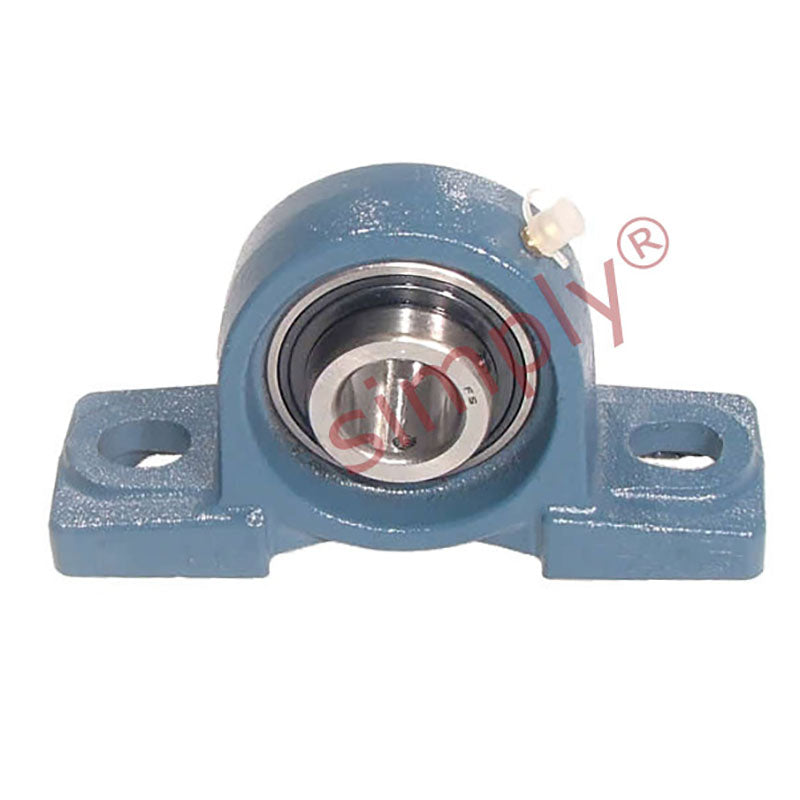

UCP203-11 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 11/16 inch Bore Insert
- Regular price
- $61.70 ex VAT
- Sale price
- $61.70
- Regular price
-
Not in stock
Quantity Price Breaks
3
$54.91
4
$51.83
9
$51.21
19
$50.59
49
$49.98
99
$49.36
499
$46.28
999
$45.66
1999
$45.04
2999
$44.42
4999
$43.19
SKU:
UCP.203-11
UCP203-11 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 11/16 inch Bore Insert
- Regular price
- $61.70 ex VAT
- Sale price
- $61.70
- Regular price
-
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| d | = | 11/16 inch |
| h | = | 30.2mm |
| a | = | 127mm |
| e | = | 96mm |
| b | = | 38mm |
| s2 | = | 19mm |
| s1 | = | 13mm |
| g | = | 15mm |
| w | = | 62mm |
| B1 | = | 31mm |
| n | = | 12.7mm |
| Bolt Size | = | M10 |
| Weight | = | 0.63 kg |
| Dynamic load | = | 760 kgf |
| Static load | = | 450 kgf |
| Rec max speed | = | 8800 rpm |
