SKU: UCHA203

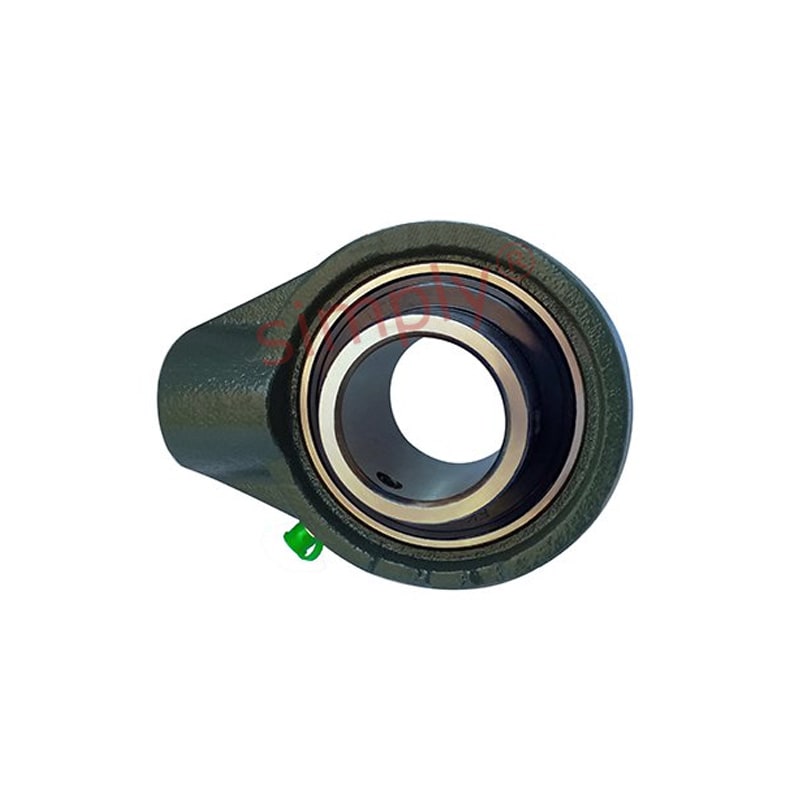

UCHA203 Metric Cast Iron Hanger Bearing Unit with 17mm Bore Insert
- Regular price
- $26.08 ex VAT
- Sale price
- $26.08
- Regular price
-
In stock
Quantity Price Breaks
3
$23.21
4
$21.91
9
$21.65
19
$21.39
49
$21.12
99
$20.86
499
$19.56
999
$19.30
1999
$19.04
2999
$18.78
4999
$18.26
SKU:
UCHA203
UCHA203 Metric Cast Iron Hanger Bearing Unit with 17mm Bore Insert
- Regular price
- $26.08 ex VAT
- Sale price
- $26.08
- Regular price
-
Description
UCHA200 Series Normal Duty Screw Conveyor Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| d | = | 17mm |
| h | = | 2-33/64 inch |
| w | = | 3-25/32 inch |
| b | = | 2-33/64 inch |
| c | = | 0 inch |
| a | = | 1-37/64 inch |
| s | = | G-3/4 |
| l | = | 3/4 inch |
| B | = | 1.2205 inch |
| n | = | 0.5 inch |
| Bearing no | = | UC203 |
| Housing no | = | HA203 |
| Weight | = | 0.617 kg |
