SKU: UCFL.207-23
UCFL207-23 Imperial Two Bolt Oval Cast Iron Flange Housing with 1-7/16 inch Bore Insert
- Regular price
- $33.40 ex VAT
- Sale price
- $33.40
- Regular price
-
In stock
Quantity Price Breaks
3
$29.73
4
$28.06
9
$27.72
19
$27.39
49
$27.05
99
$26.72
499
$25.05
999
$24.72
1999
$24.38
2999
$24.05
4999
$23.38
SKU:
UCFL.207-23

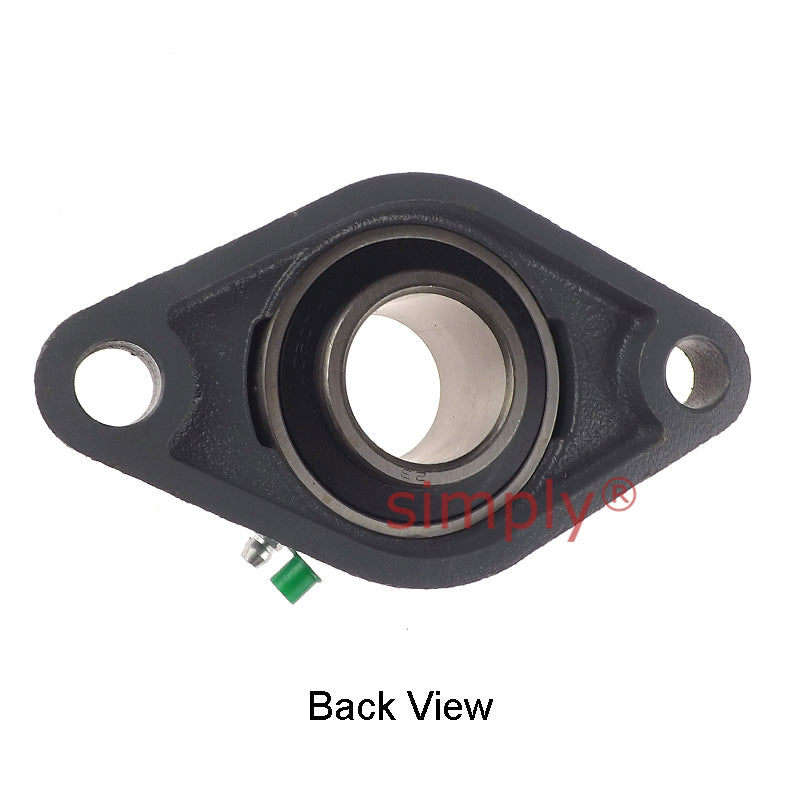

UCFL207-23 Imperial Two Bolt Oval Cast Iron Flange Housing with 1-7/16 inch Bore Insert
- Regular price
- $33.40 ex VAT
- Sale price
- $33.40
- Regular price
-
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| d | = | 1-7/16 inch |
| a | = | 161mm |
| e | = | 130mm |
| i | = | 19mm |
| g | = | 14mm |
| L | = | 34mm |
| S | = | 16mm |
| b | = | 90mm |
| z | = | 44.4mm |
| B1 | = | 42.9mm |
| n | = | 17.5mm |
| Bolt Size | = | M14 |
| Weight | = | 1.2 kg |
| Dynamic load | = | 2010 kgf |
| Static load | = | 1390 kgf |
| Rec max speed | = | 4500 rpm |
