SKU: UCF.216.TS.CHAL

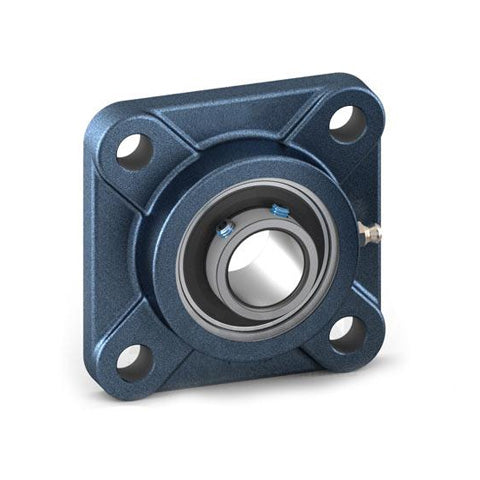

Challenge / FK UCF216 Metric Cast Iron Four Bolt Square Flange Housing with 80mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- $542.25 ex VAT
- Sale price
- $542.25
- Regular price
-
Quantity Price Breaks
Challenge / FK UCF216 Metric Cast Iron Four Bolt Square Flange Housing with 80mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- $542.25 ex VAT
- Sale price
- $542.25
- Regular price
-
Description
UCF Cast Iron Four Bolt Square Flange Housing: These normal-dutybearing units are fitted with a triple lip seal in a cast iron housing and includes a grease nipple to facilitate re-lubrication. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Technical
| Shaft Diameter d | = | 80mm |
| Width a | = | 208mm |
| Recommended Bolt Centres L | = | 165mm |
| Back of Casting to Centre Line of Bearing i | = | 34mm |
| Depth of Casting at Bolt g | = | 22mm |
| Overall Casting Height l | = | 58mm |
| Bolt Hole Diameter s | = | 23mm |
| Back of Casting to Bearing Front z | = | 83.3mm |
| Bearing Insert Width Bi | = | 82.6mm |
| Back of Bearing to Centre Line n | = | 33.3mm |
| Bolt Size | = | M20 |
| Grub Screws x 2 | = | M12x1.50mm |
| Load Rating (Dynamic) | = | 5700kg |
| Load Rating (Static) | = | 4550kg |
| Max Speed | = | 1100 rev/min |
| Grease Nipple Thread Size | = | M10 |
| Working Temperature | = | -30& |
| deg | = | C to +120& |
| deg | = | C |
| Insert No | = | UC216 |
| Housing No | = | F216 |
