SKU: UCF.206-20.TS.CHAL

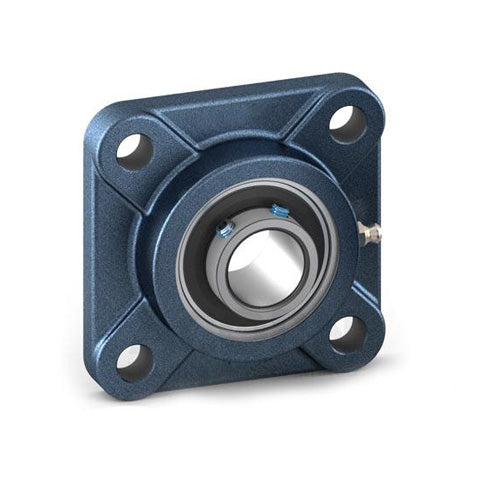

Challenge / FK UCF206-20 Imperial Cast Iron Four Bolt Square Flange Housing with 1-1/4 inch Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- $63.30 ex VAT
- Sale price
- $63.30
- Regular price
-
Quantity Price Breaks
Challenge / FK UCF206-20 Imperial Cast Iron Four Bolt Square Flange Housing with 1-1/4 inch Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- $63.30 ex VAT
- Sale price
- $63.30
- Regular price
-
Description
UCF Cast Iron Four Bolt Square Flange Housing: These normal-dutybearing units are fitted with a triple lip seal in a cast iron housing and includes a grease nipple to facilitate re-lubrication. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Technical
| Shaft Diameter d | = | 1-1/4 inch |
| Width a | = | 108mm |
| Recommended Bolt Centres L | = | 83mm |
| Back of Casting to Centre Line of Bearing i | = | 18mm |
| Depth of Casting at Bolt g | = | 14mm |
| Overall Casting Height l | = | 31mm |
| Bolt Hole Diameter s | = | 12mm |
| Back of Casting to Bearing Front z | = | 40.2mm |
| Bearing Insert Width Bi | = | 38.1mm |
| Back of Bearing to Centre Line n | = | 15.9mm |
| Bolt Size | = | 3/8 inch |
| Load Rating (Dynamic) | = | 1520kg |
| Load Rating (Static) | = | 1020kg |
| Max Speed | = | 2800 rev/min |
| Grease Nipple Thread Size | = | M6 |
| Working Temperature | = | -30& |
| deg | = | C to +120& |
| deg | = | C |
| Insert No | = | UC206-20 |
| Housing No | = | F206 |
