SKU: UCF.205-16

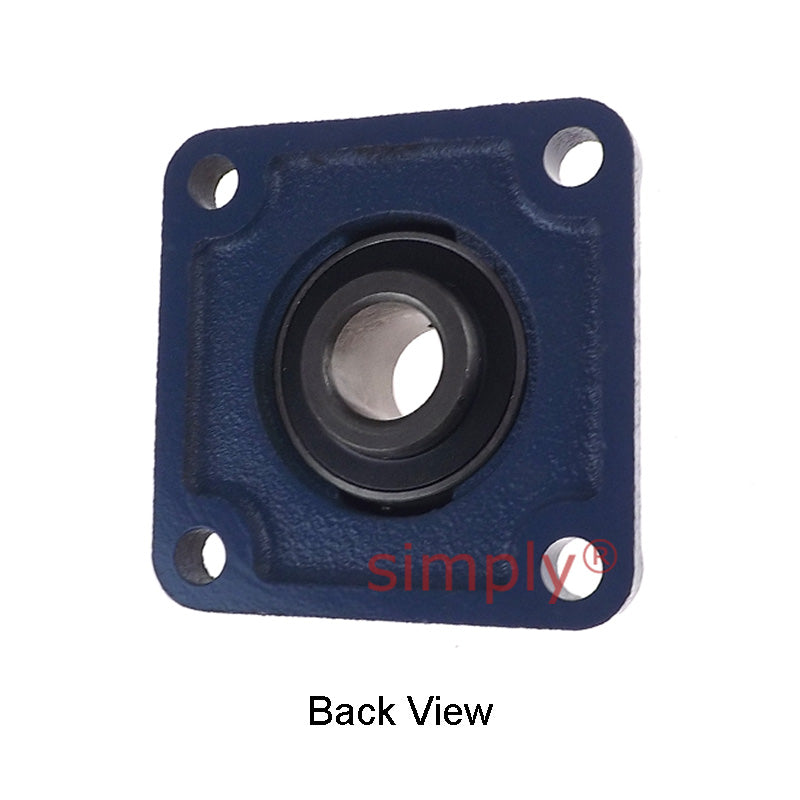

UCF205-16 Imperial Four Bolt Square Cast Iron Flange Housing with 1 inch Bore Insert
- Regular price
- $20.79 ex VAT
- Sale price
- $20.79
- Regular price
-
In stock
Quantity Price Breaks
3
$18.50
4
$17.46
9
$17.26
19
$17.05
49
$16.84
99
$16.63
499
$15.59
999
$15.38
1999
$15.18
2999
$14.97
4999
$14.55
SKU:
UCF.205-16
UCF205-16 Imperial Four Bolt Square Cast Iron Flange Housing with 1 inch Bore Insert
- Regular price
- $20.79 ex VAT
- Sale price
- $20.79
- Regular price
-
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| d | = | 1 inch |
| a | = | 95mm |
| e | = | 70mm |
| i | = | 16mm |
| g | = | 14mm |
| L | = | 27mm |
| S | = | 12mm |
| Z | = | 35.7mm |
| Bi | = | 34mm |
| n | = | 14.3mm |
| Bolt Size | = | M10 |
| Weight | = | 0.82 kg |
| Dynamic load | = | 1100 kgf |
| Static load | = | 710 kgf |
| Rec max speed | = | 6250 rpm |
