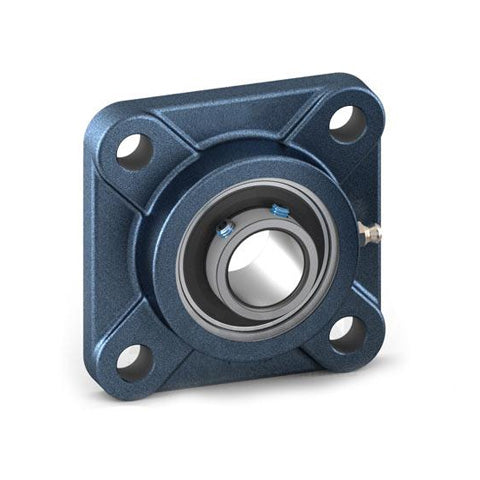

Challenge / FK UCF203 Metric Cast Iron Four Bolt Square Flange Housing with 17mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge / FK UCF203 Metric Cast Iron Four Bolt Square Flange Housing with 17mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge / FK UCF203 Metric Cast Iron Four Bolt Square Flange Housing with 17mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge / FK UCF203 Metric Cast Iron Four Bolt Square Flange Housing with 17mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use

SKU: UCF.203.TS.CHAL

Challenge / FK UCF203 Metric Cast Iron Four Bolt Square Flange Housing with 17mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use

$45.85 ex VAT
$45.85
ex VAT
Equivalent to: UCF.203
In stock

Quantity Price Breaks

3 $40.81
5 $38.51
9 $38.06
19 $37.60
49 $37.14
74 $36.68
99 $34.39
199 $33.93
249 $33.47
499 $33.01
999 $32.10
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Challenge / FK UCF203 Metric Cast Iron Four Bolt Square Flange Housing with 17mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge / FK UCF203 Metric Cast Iron Four Bolt Square Flange Housing with 17mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
SKU: UCF.203.TS.CHAL

Challenge / FK UCF203 Metric Cast Iron Four Bolt Square Flange Housing with 17mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use

$45.85 ex VAT
$45.85
ex VAT

Description

UCF Cast Iron Four Bolt Square Flange Housing: These normal-dutybearing units are fitted with a triple lip seal in a cast iron housing and includes a grease nipple to facilitate re-lubrication. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing

Technical

Shaft Diameter d = 17mm
Width a = 86mm
Recommended Bolt Centres L = 64mm
Back of Casting to Centre Line of Bearing i = 15mm
Depth of Casting at Bolt g = 12mm
Overall Casting Height l = 25.5mm
Bolt Hole Diameter s = 12mm
Back of Casting to Bearing Front z = 33.3mm
Bearing Insert Width Bi = 31mm
Back of Bearing to Centre Line n = 12.7mm
Working Temperature = -30&
deg = C to +120&
deg = C
Insert No = UC203
Housing No = F203
