SKU: UCF.201-8

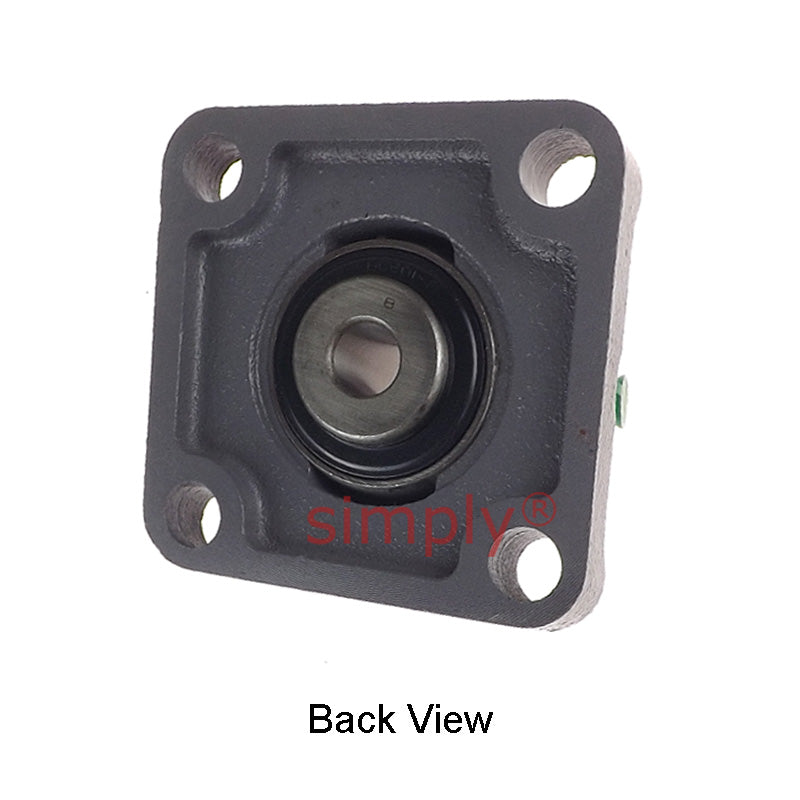

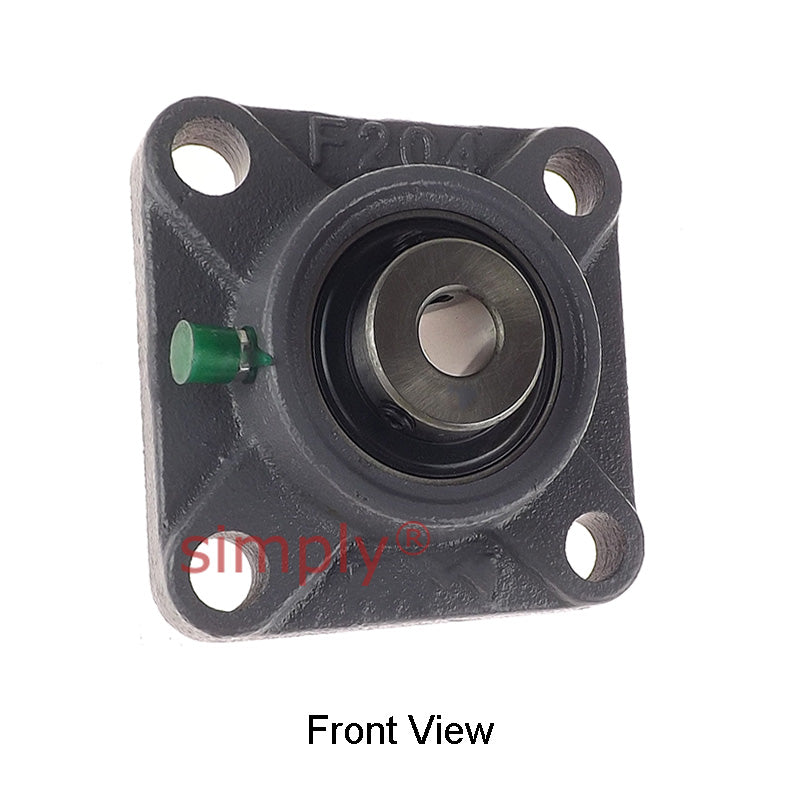

UCF201-8 Imperial Four Bolt Square Cast Iron Flange Housing with 1/2 inch Bore Insert
- Regular price
- $20.07 ex VAT
- Sale price
- $20.07
- Regular price
-
In stock
Quantity Price Breaks
3
$17.86
4
$16.86
9
$16.66
19
$16.46
49
$16.26
99
$16.06
499
$15.05
999
$14.85
1999
$14.65
2999
$14.45
4999
$14.05
SKU:
UCF.201-8
UCF201-8 Imperial Four Bolt Square Cast Iron Flange Housing with 1/2 inch Bore Insert
- Regular price
- $20.07 ex VAT
- Sale price
- $20.07
- Regular price
-
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| d | = | 1/2 inch |
| a | = | 86mm |
| e | = | 64mm |
| i | = | 15mm |
| g | = | 12mm |
| L | = | 25.4mm |
| S | = | 12mm |
| Z | = | 33.3mm |
| Bi | = | 31mm |
| n | = | 12.7mm |
| Bolt Size | = | M10 |
| Weight | = | 0.63 kg |
| Dynamic load | = | 1000 kgf |
| Static load | = | 630 kgf |
| Rec max speed | = | 8800 rpm |
