SKU: UC.216.TS.CHAL

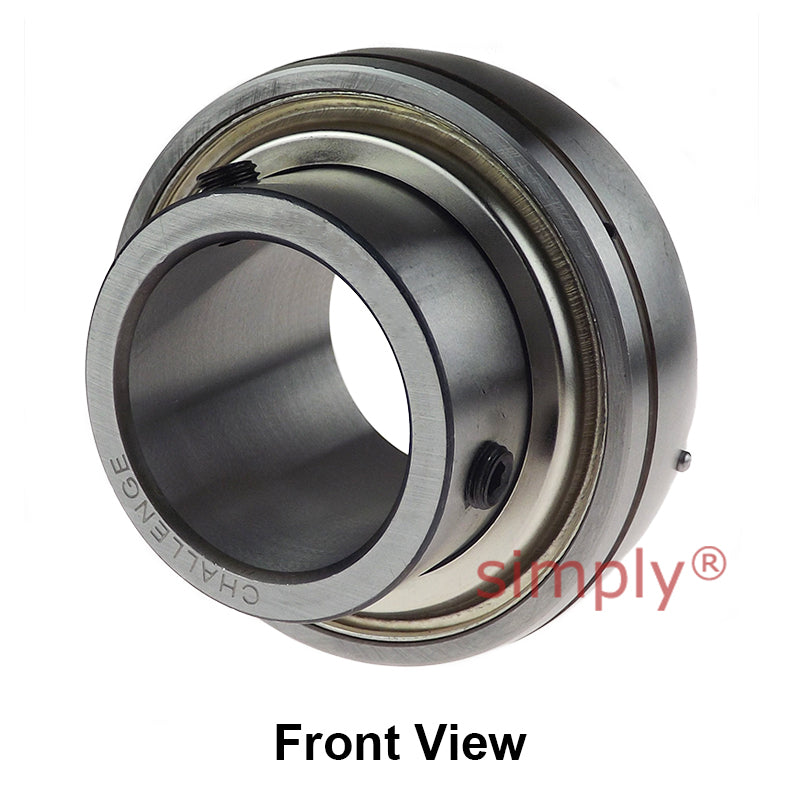

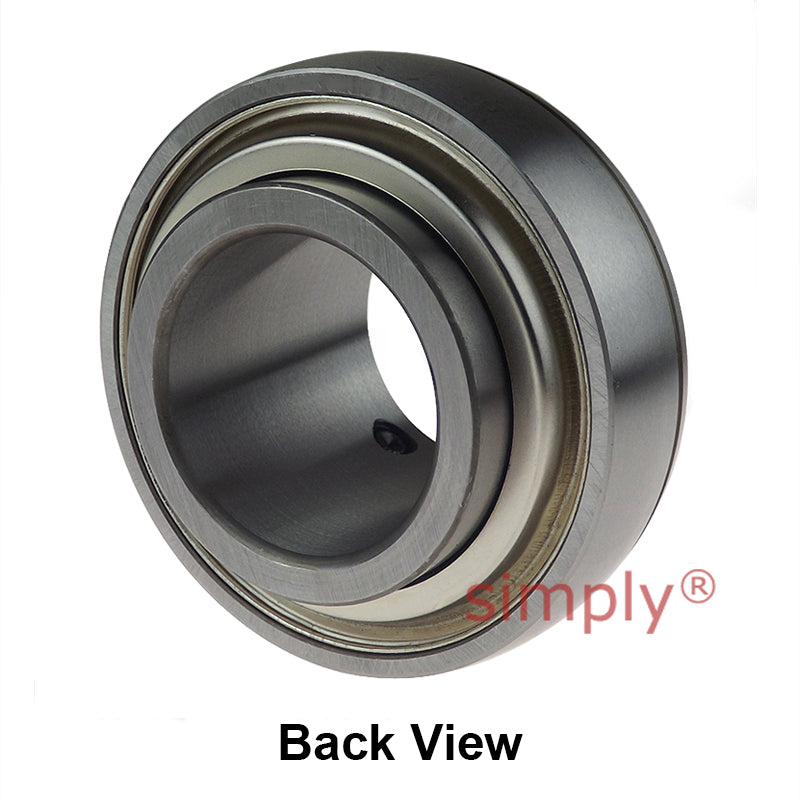

Challenge UC216 Metric Insert with Grub Screws with 80mm Bore 140mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- $435.34 ex VAT
- Sale price
- $435.34
- Regular price
-
In stock
Quantity Price Breaks
3
$387.45
5
$365.69
9
$361.33
19
$356.98
49
$352.63
74
$348.27
99
$326.51
199
$322.15
249
$317.80
499
$313.44
999
$304.74
SKU:
UC.216.TS.CHAL
Challenge UC216 Metric Insert with Grub Screws with 80mm Bore 140mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- $435.34 ex VAT
- Sale price
- $435.34
- Regular price
-
Description
UC Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. Also available as a complete housing assembly.
Benefits: High tolerance to harsh environments, cost effective bearing, re-lubricatable, grub screw fixing
Technical
| Shaft Diameter d | = | 80mm |
| Outside Diameter D | = | 140mm |
| Overall Width Bi | = | 82.6mm |
| Inner Race Width Be | = | 33mm |
| Back of Bearing to Centre Line n | = | 33.3mm |
| Front of Bearing to Centre Line m | = | 49.3mm |
| Dimension G | = | 12mm |
| Grub Screws x 2 | = | M12x1.50mm |
| Load Rating (Dynamic) | = | 5700kg |
| Load Rating (Static) | = | 4550kg |
| Max Speed | = | 1100 rev/min |
| Grease Nipple Thread Size | = | M10 |
| Working Temperature | = | -30& |
| deg | = | C to +120& |
| deg | = | C |
