SKU: UC.207-20.TS.CHAL

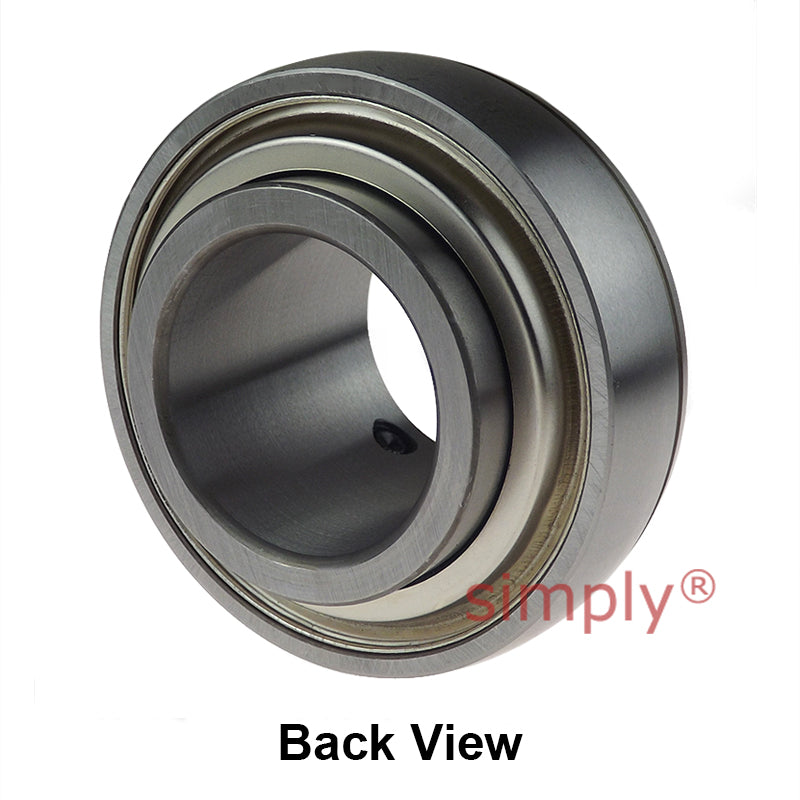

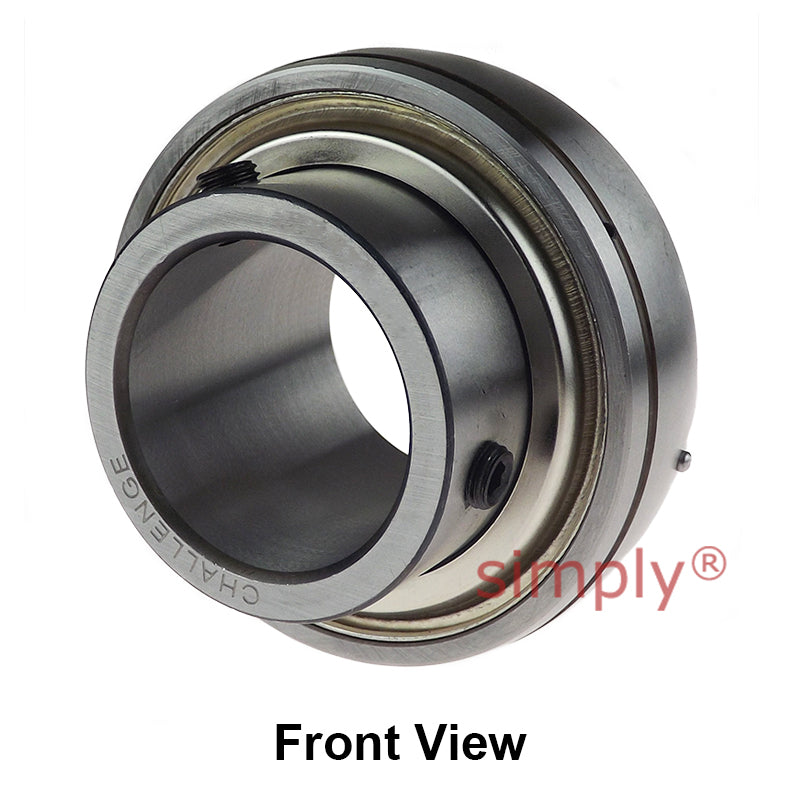

Challenge / FK UC207-20 Imperial Insert with Grub Screws with 1-1/4 inch Bore 72mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- $40.35 ex VAT
- Sale price
- $40.35
- Regular price
-
In stock
Quantity Price Breaks
3
$35.91
5
$33.89
9
$33.49
19
$33.09
49
$32.68
74
$32.28
99
$30.26
199
$29.86
249
$29.46
499
$29.05
999
$28.25
SKU:
UC.207-20.TS.CHAL
Challenge / FK UC207-20 Imperial Insert with Grub Screws with 1-1/4 inch Bore 72mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- $40.35 ex VAT
- Sale price
- $40.35
- Regular price
-
Description
UC Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. Also available as a complete housing assembly.
Benefits: High tolerance to harsh environments, cost effective bearing, re-lubricatable, grub screw fixing
Technical
| Shaft Diameter d | = | 1-1/4 inch |
| Outside Diameter D | = | 72mm |
| Overall Width Bi | = | 42.9mm |
| Inner Race Width Be | = | 20mm |
| Back of Bearing to Centre Line n | = | 17.5mm |
| Front of Bearing to Centre Line m | = | 25.4mm |
| Dimension G | = | 7mm |
| Grub Screws x 2 | = | 5/16 - 24UNF inch |
| Load Rating (Dynamic) | = | 2010kg |
| Load Rating (Static) | = | 1390kg |
| Max Speed | = | 2400 rev/min |
| Grease Nipple Thread Size | = | M6 |
| Working Temperature | = | -30& |
| deg | = | C to +120& |
| deg | = | C |
