SKU: TRB3244

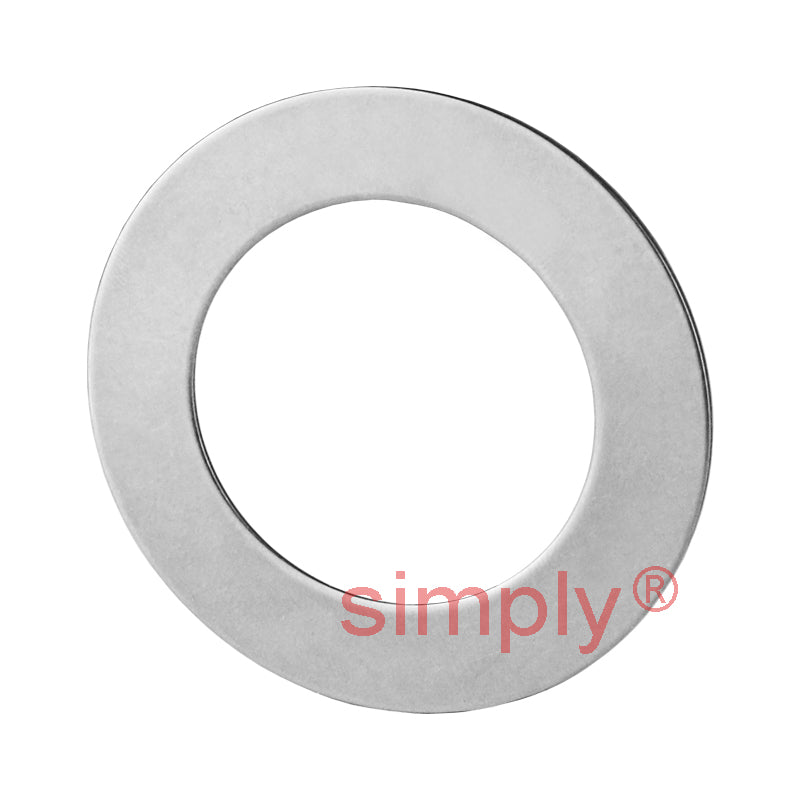

TRB3244 Needle Roller Thrust Washer 2x2.75x0.063 inch
- Regular price
- $13.65 ex VAT
- Sale price
- $13.65
- Regular price
-
In stock
Quantity Price Breaks
10
$12.15
19
$11.47
29
$11.33
39
$11.19
49
$11.06
74
$10.92
99
$10.24
199
$10.10
249
$9.96
499
$9.83
999
$9.56
SKU:
TRB3244
TRB3244 Needle Roller Thrust Washer 2x2.75x0.063 inch
- Regular price
- $13.65 ex VAT
- Sale price
- $13.65
- Regular price
-
Description
|
TRA Series Thrust Washers: Made of spring steel these thrust washers are hardened and polished. These washers enable a very economic bearing arrangements and serve as both shaft and housing raceways having moderate stiffness and running accuracy. The series consists of TRA, TRB, TRC, TRD and TRE washers varying in thickness only. Benefits: Economical in the use of space, accurately machined and polished, hardened spring steel, moderate running accuracy and stiffness, inexpensive. |
Technical
| d | = | 2 inch |
| d1 | = | 2.75 inch |
| h min | = | 0.063 inch |
| h max | = | 0.063 inch |
| Bearing | = | NTA3244 |
| Pilot min | = | 1.997 inch |
| Pilot max | = | 2.000 inch |
| Dia to clear washer | = | 2.781 inch |
| Weight | = | 0.048 lbs |
