SKU: TIH220M/MV-SKF
SKF TIH220M/MV High Frequency Portable Induction Bearing Heater for up to 300kg (400-460 Volt)
- Regular price
- $14,101.55 ex VAT
- Sale price
- $14,101.55
- Regular price
-
Not in stock
No price breaks available for this product.
SKU:
TIH220M/MV-SKF
SKF TIH220M/MV High Frequency Portable Induction Bearing Heater for up to 300kg (400-460 Volt)
- Regular price
- $14,101.55 ex VAT
- Sale price
- $14,101.55
- Regular price
-
Description
|

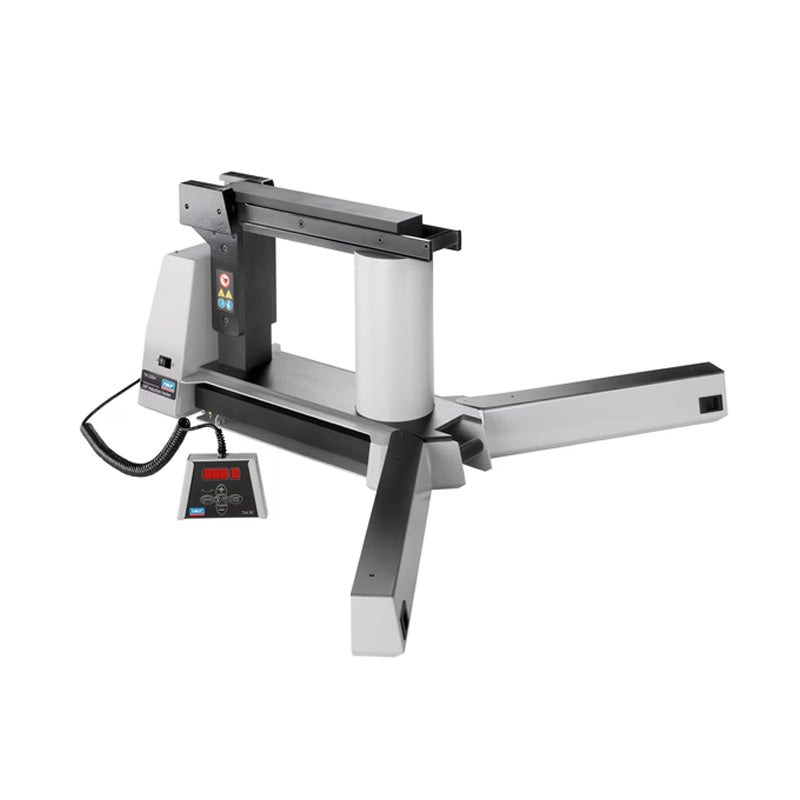

SKF TIH220M/MV Large Bearing Heater: The large induction heater TIH 220m is a reliable and robust induction heater from the TIH...m range suitable for heating bearings up to a maximum weight of 300 kg (660 lbs) and solid components up to a maximum weight of 150kg (330 lbs). Advanced design of the power electronics including current and overheating control, combined with user friendly features such as sliding arms and remote control are standard to the range. Maximum efficiency is achieved by placing the induction coil outside the heater’s housing, in the centre of the bearing, resulting in shorter heating time and lower energy consumption. The LED operating display and control panel are integrated in a remote control, which makes the heater easy to use. To suit different operating voltages worldwide, the TIH 220m is available in different voltage variants. SKF m20 concept m20 represents the weight(kg) of the heaviest Spherical Roller Bearing 231 bearing which can be heated from 20 to 110 °C (68 to 230 °F) in 20 minutes. This defines the heater’s power output instead of its power consumption. Benefits: Compact, lightweight , efficient. Note: This is a 400-460 volt 3 Phase Heater. Units are supplied without a plug. |
