SKU: TIH100M/MV-SKF

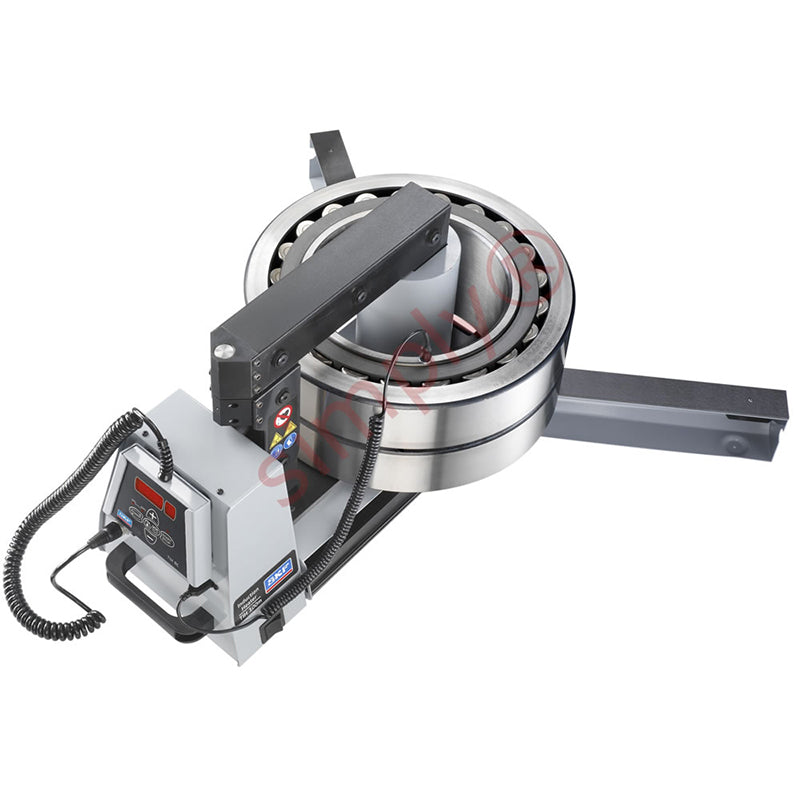

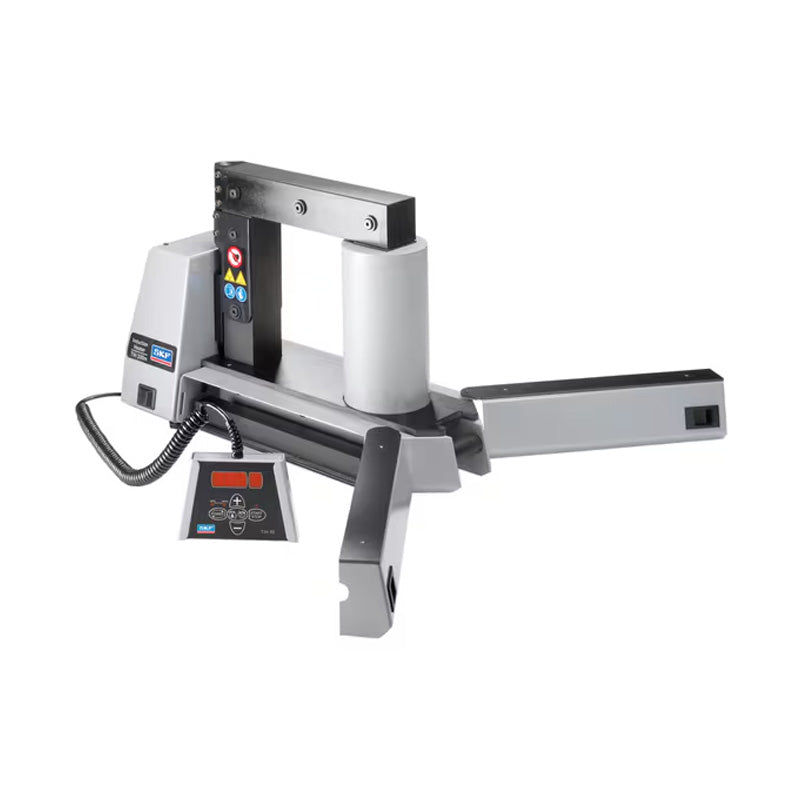

SKF TIH100M/MV High Frequency Portable Induction Bearing Heater for up to 97kg
- Regular price
- $7,199.91 ex VAT
- Sale price
- $7,199.91
- Regular price
-
Not in stock
Quantity Price Breaks
10+
$6,407.92
19+
$6,047.92
29+
$5,975.93
39+
$5,903.93
49+
$5,831.93
74+
$5,759.93
99+
$5,399.93
199+
$5,327.93
249+
$5,255.93
499+
$5,183.94
999+
$5,039.94
SKU:
TIH100M/MV-SKF
SKF TIH100M/MV High Frequency Portable Induction Bearing Heater for up to 97kg
- Regular price
- $7,199.91 ex VAT
- Sale price
- $7,199.91
- Regular price
-
Description
|
SKF TIH100M/MV Medium Bearing Heater: The SKF medium induction heater TIH 100m has the same high standards of efficiency and performance as the small heater combined with increased capacity. The advanced design of the power electronics allows features of accurate electric current control, cut-outs to avoid overheating, controls on rate of temperature increase, these are as some of the standard features in the range. Placing the induction coil outside the heater’s housing allows the heating of bearings weighing up to 120 kg (264 lb). The heater is equipped with thermal overheating protection to reduce the risk of damage to the induction coil and the electronics. In addition to temperature mode, the TIH 100m is equipped with a time mode for heating components other than bearings. The heater is supplied standard with three yokes. SKF m20 concept m20 represents the weight(kg)of the heaviest Spherical Roller Bearing 231 bearing which can be heated from 20 to 110 °C (68 to 230 °F) in 20 minutes. This defines the heater’s power output instead of its power consumption. Benefits: Compact, lightweight , efficient. Note: This is a 400-460 volt 3 Phase Heater Units are supplied without a plug. |
