SKU: TCJ35-XL-N-INA

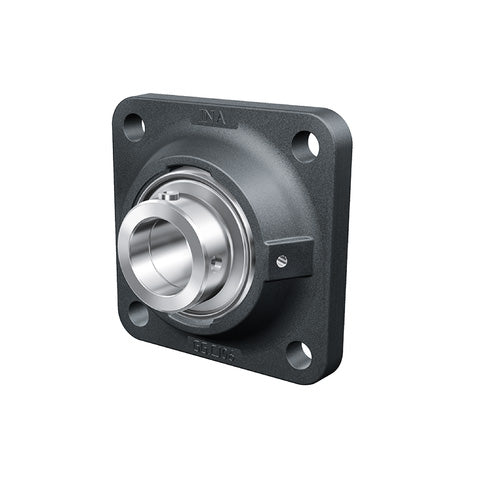

INA TCJ35XLN Four Bolt Cast Iron Square Housing with Eccentric Collar Insert 35mm Bore
- Regular price
- $126.62 ex VAT
- Sale price
- $126.62
- Regular price
-
In stock
Quantity Price Breaks
10+
$112.69
19+
$106.36
29+
$105.09
39+
$103.83
49+
$102.56
74+
$101.30
99+
$94.97
199+
$93.70
249+
$92.43
499+
$91.17
999+
$88.63
SKU:
TCJ35-XL-N-INA
INA TCJ35XLN Four Bolt Cast Iron Square Housing with Eccentric Collar Insert 35mm Bore
- Regular price
- $126.62 ex VAT
- Sale price
- $126.62
- Regular price
-
Description
|
INA 4 Bolt Square Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This square cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. Benefits: Re-lubricatable, eccentric collar, tolerates misalignment of the shaft. |
