SKU: TBS-T-16B-23

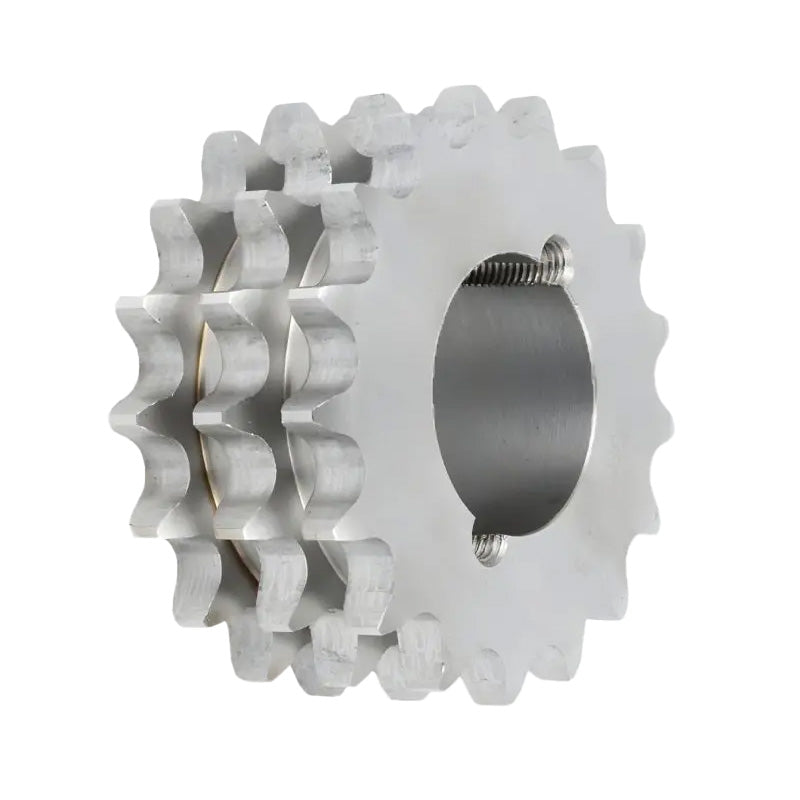

23 Tooth 16B Triplex Sprocket Tapered Locking Bush Type for 1 inch Pitch Chain (Bush not Incl.)
- Regular price
- $254.37 ex VAT
- Sale price
- $254.37
- Regular price
-
Not in stock
Quantity Price Breaks
5
$226.39
9
$213.67
19
$211.13
29
$208.58
49
$206.04
74
$203.50
99
$190.78
199
$188.23
249
$185.69
499
$183.15
999
$178.06
SKU:
TBS-T-16B-23
23 Tooth 16B Triplex Sprocket Tapered Locking Bush Type for 1 inch Pitch Chain (Bush not Incl.)
- Regular price
- $254.37 ex VAT
- Sale price
- $254.37
- Regular price
-
Description
Tapered Bore Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Technical

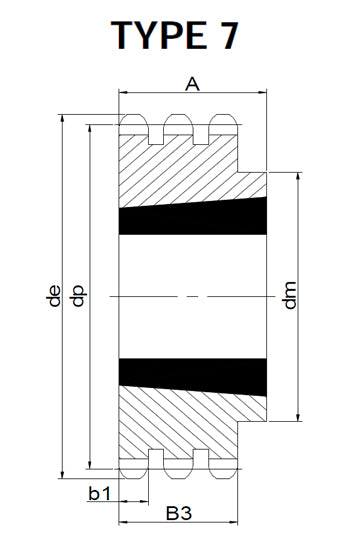

| Tooth Radius r3 | = | 26mm |
| Chamfer c | = | 2.5mm |
| Tooth Width b1 | = | 15.8mm |
| Tooth Width B1 | = | 16.2mm |
| Tooth Width B2 | = | 47.7mm |
| Tooth Width B3 | = | 79.6mm |
| Pitch | = | 25.4mm |
| Width Between Inner | = | 17.02mm |
| Roller Diameter | = | 15.88mm |
| No. of Teeth | = | 23 |
| Outer Diameter de | = | 197.5mm |
| Pitch Diameter dp | = | 186.53mm |
| Hub Diameter dm | = | 159mm |
| Length Through Bore A | = | 89mm |
| Reference | = | 83-23 |
| Taper Bush | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=3535+tapered+locking+bush> | = | 3535 Click Here< |
| /a> | = |
