SKU: TBS-S-10B-25

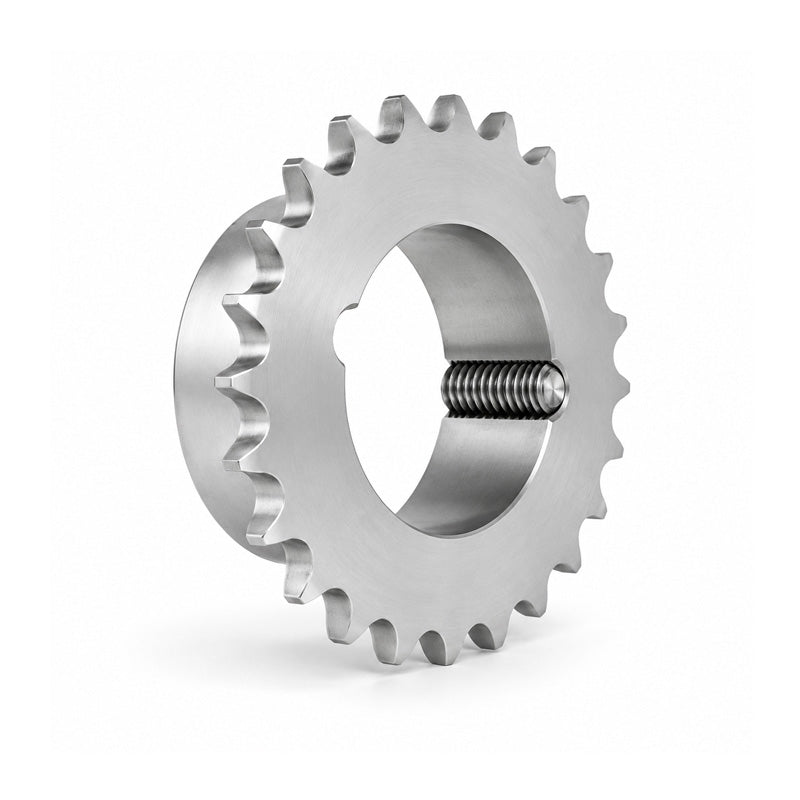

25 Tooth 10B Simplex Sprocket Tapered Locking Bush Type for 5/8 inch Pitch Chain (Bush not Incl.)
- Regular price
- $57.55 ex VAT
- Sale price
- $57.55
- Regular price
-
In stock
Quantity Price Breaks
5
$51.22
9
$48.34
19
$47.77
29
$47.19
49
$46.62
74
$46.04
99
$43.16
199
$42.59
249
$42.01
499
$41.44
999
$40.29
SKU:
TBS-S-10B-25
25 Tooth 10B Simplex Sprocket Tapered Locking Bush Type for 5/8 inch Pitch Chain (Bush not Incl.)
- Regular price
- $57.55 ex VAT
- Sale price
- $57.55
- Regular price
-
Description
Tapered Bore Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Technical
| Tooth Radius r3 | = | 16mm |
| Chamfer c | = | 1.6mm |
| Tooth Width b1 | = | 9mm |
| Tooth Width B1 | = | 9.1mm |
| Tooth Width B2 | = | 25.5mm |
| Tooth Width B3 | = | 42.1mm |
| Pitch | = | 15.875mm |
| Width Between Inner | = | 9.65mm |
| Roller Diameter | = | 10.16mm |
| No. of Teeth | = | 25 |
| Outer Diameter de | = | 134mm |
| Pitch Diameter dp | = | 126.66mm |
| Hub Diameter dm | = | 90mm |
| Length Through Bore A | = | 32mm |
| Reference | = | 51-25 |
| Taper Bush | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=2012+tapered+locking+bush> | = | 2012 Click Here< |
| /a> | = |
