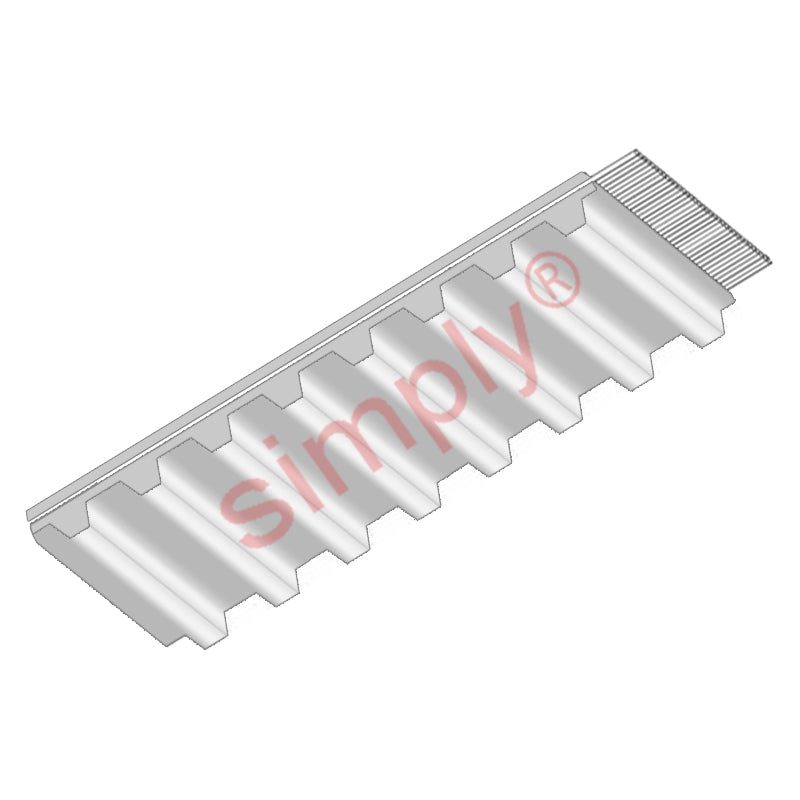

Major Brand T10-8000-25 Synchronous Toothed Timing Belt 25mm Wide 10mm Pitch 800 Teeth

SKU: T10-8000-25-MB

Major Brand T10-8000-25 Synchronous Toothed Timing Belt 25mm Wide 10mm Pitch 800 Teeth

$211.26 ex VAT
$211.26
ex VAT
Not in stock

Quantity Price Breaks

3 $188.02
5 $177.46
9 $175.35
19 $173.23
49 $171.12
74 $169.01
99 $158.45
199 $156.33
249 $154.22
499 $152.11
999 $147.88
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Major Brand T10-8000-25 Synchronous Toothed Timing Belt 25mm Wide 10mm Pitch 800 Teeth
SKU: T10-8000-25-MB

Major Brand T10-8000-25 Synchronous Toothed Timing Belt 25mm Wide 10mm Pitch 800 Teeth

$211.26 ex VAT
$211.26
ex VAT

Description

Synchronous Drive Belts: Power transmission belts have become a valuable element of synchronous transmission throughout the entire field of drive technology. They enable purpose-made solutions to be realized effectively and economically.
Thanks to their high flexibility synchronous drive belts enable low-cost design, even with difficult drive system requirements such as high transmission ratios, high belt speeds, small pulley diameters and back tensioning rollers.
Benefits: Synchronised drive, Outstanding resistance to fatigue and deformation, as well as a good resistance to environmental influences, temperature extremes and ageing, are all factors which give the user high service reliability and freedom from maintenance.

Technical

No Teeth = 800
Width = 25mm
Tooth Pitch t = 10mm
Belt Length = 8000mm
Belt Thickness h< = sub>
s< = /sub>
= 7mm
Tooth Height h< = sub>
t< = /sub>
= 2.5mm
Flank Angle = 40 deg
Tension member loadings = 2000 Fadm(N)
Belt weight = 0.25kg/m
