SKU: SUCT.PL.209

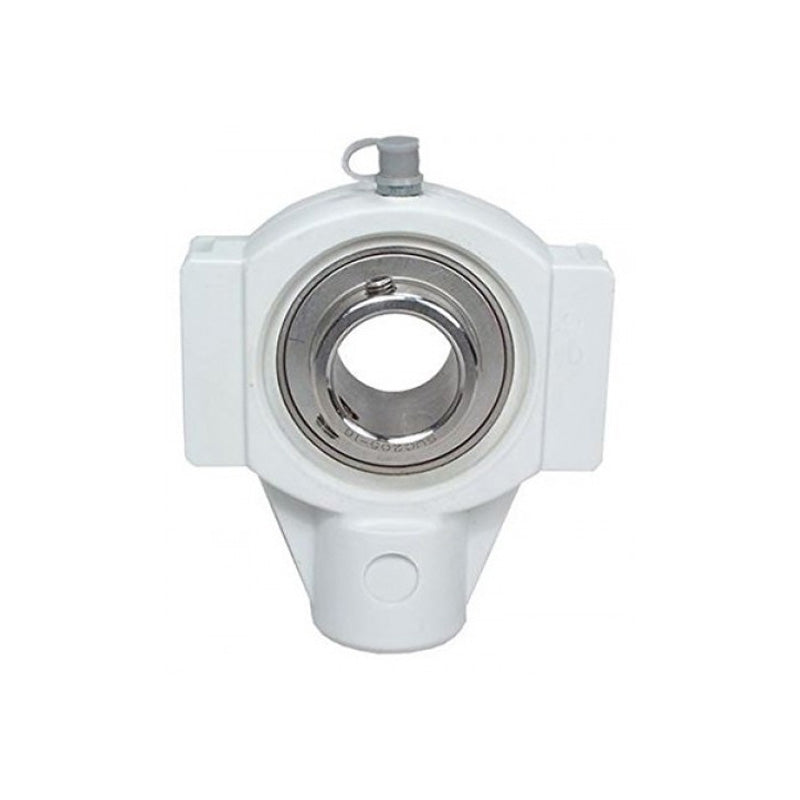

SUCTPL209 Metric Thermo Plastic Take Up Unit Housing with 45mm Bore Stainless Insert
- Regular price
- $176.42 ex VAT
- Sale price
- $176.42
- Regular price
-
Not in stock
Quantity Price Breaks
3
$157.01
4
$148.19
9
$146.43
19
$144.66
49
$142.90
99
$141.14
499
$132.32
999
$130.55
1999
$128.79
2999
$127.02
4999
$123.49
SKU:
SUCT.PL.209
SUCTPL209 Metric Thermo Plastic Take Up Unit Housing with 45mm Bore Stainless Insert
- Regular price
- $176.42 ex VAT
- Sale price
- $176.42
- Regular price
-
Description
|
SUCTPL or ST Series Thermo-Plastic Take up Units: Supplied with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Colour may vary. |
Technical
| d | = | 45mm |
| a | = | 149mm |
| c | = | 40mm |
| d | = | 16mm |
| h | = | 90mm |
| m | = | 102mm |
| s | = | M20 |
| t | = | 50mm |
| v | = | 117mm |
| w | = | 85mm |
| B | = | 49.2mm |
| n | = | 19mm |
| Weight | = | 2.4 kg |
| Dynamic load | = | 2560 kgf |
| Static load | = | 1810 kgf |
| Temperature Range | = | -35 to 102 deg C |
| Rec max speed | = | 3700 rpm |
