SKU: SUCT.PL.205

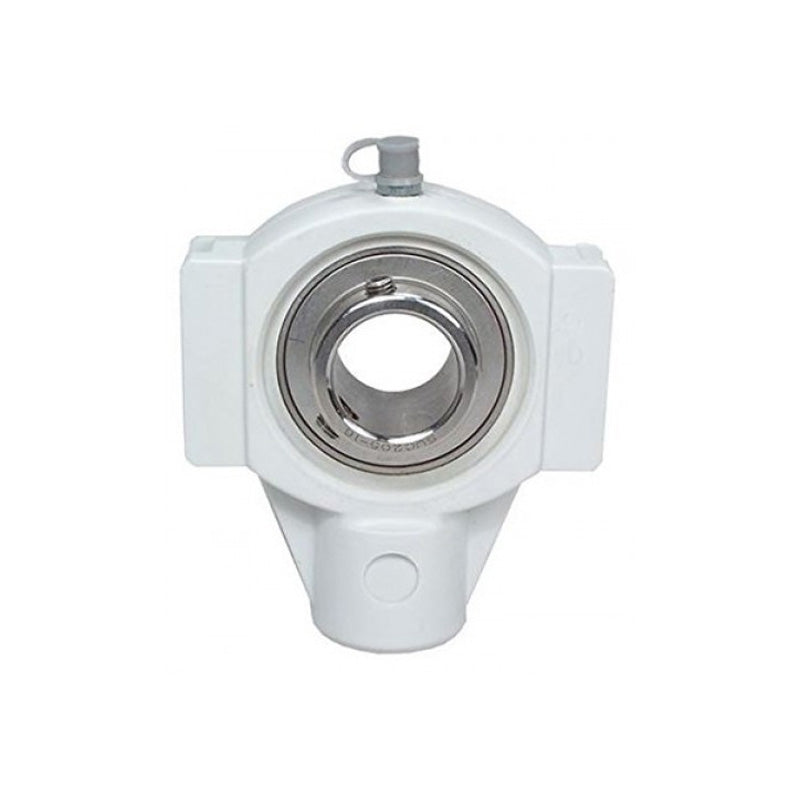

SUCTPL205 Metric Thermo Plastic Take Up Unit Housing with 25mm Bore Stainless Insert
- Regular price
- $70.96 ex VAT
- Sale price
- $70.96
- Regular price
-
In stock
Quantity Price Breaks
3
$63.15
4
$59.61
9
$58.90
19
$58.19
49
$57.48
99
$56.77
499
$53.22
999
$52.51
1999
$51.80
2999
$51.09
4999
$49.67
SKU:
SUCT.PL.205
SUCTPL205 Metric Thermo Plastic Take Up Unit Housing with 25mm Bore Stainless Insert
- Regular price
- $70.96 ex VAT
- Sale price
- $70.96
- Regular price
-
Description
|
SUCTPL or ST Series Thermo-Plastic Take up Units: Supplied with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Colour may vary. |
Technical
| d | = | 25mm |
| a | = | 99mm |
| c | = | 27.5mm |
| d | = | 12mm |
| h | = | 64mm |
| m | = | 76mm |
| s | = | M16 |
| t | = | 36mm |
| v | = | 88mm |
| w | = | 47mm |
| B | = | 34.1mm |
| n | = | 14.3mm |
| Weight | = | 0.83 kg |
| Dynamic load | = | 1100 kgf |
| Static load | = | 710 kgf |
| Temperature Range | = | -35 to 102 deg C |
| Rec max speed | = | 6250 rpm |
