SKU: SUCT.PL.204

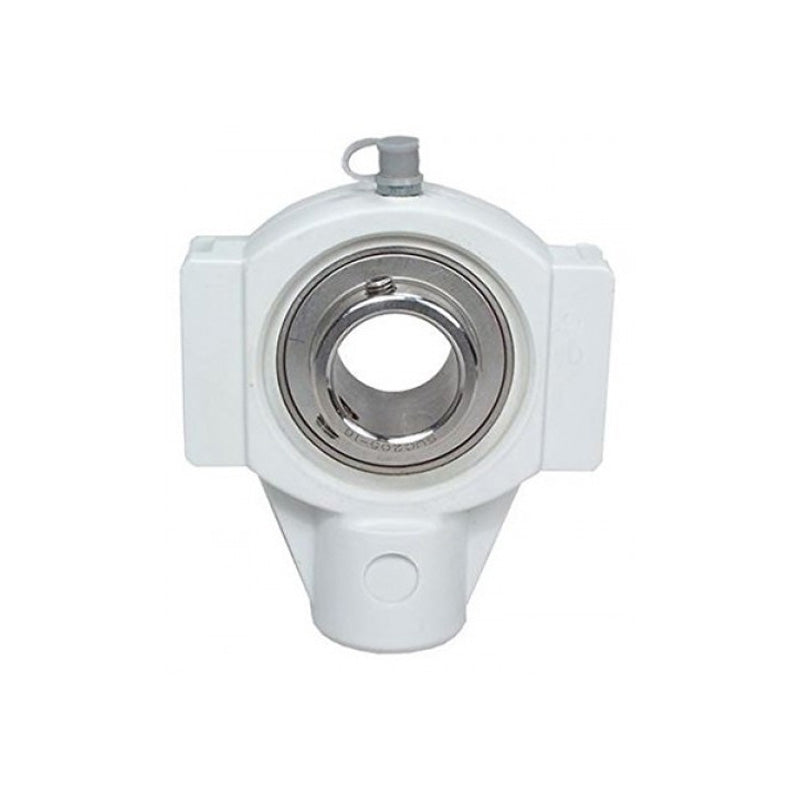

SUCTPL204 Metric Thermo Plastic Take Up Unit Housing with 20mm Bore Stainless Insert
- Regular price
- $64.69 ex VAT
- Sale price
- $64.69
- Regular price
-
In stock
Quantity Price Breaks
3
$57.57
4
$54.34
9
$53.69
19
$53.05
49
$52.40
99
$51.75
499
$48.52
999
$47.87
1999
$47.22
2999
$46.58
4999
$45.28
SKU:
SUCT.PL.204
SUCTPL204 Metric Thermo Plastic Take Up Unit Housing with 20mm Bore Stainless Insert
- Regular price
- $64.69 ex VAT
- Sale price
- $64.69
- Regular price
-
Description
|
SUCTPL or ST Series Thermo-Plastic Take up Units: Supplied with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Colour may vary. |
Technical
| d | = | 20mm |
| a | = | 99mm |
| c | = | 27.5mm |
| d | = | 12mm |
| h | = | 64mm |
| m | = | 76mm |
| s | = | M16 |
| t | = | 36mm |
| v | = | 88mm |
| w | = | 47mm |
| B | = | 31mm |
| n | = | 12.7mm |
| Weight | = | 0.79 kg |
| Dynamic load | = | 1000 kgf |
| Static load | = | 630 kgf |
| Temperature Range | = | -35 to 102 deg C |
| Rec max speed | = | 7450 rpm |
