SKU: SUCP.PL.204-12

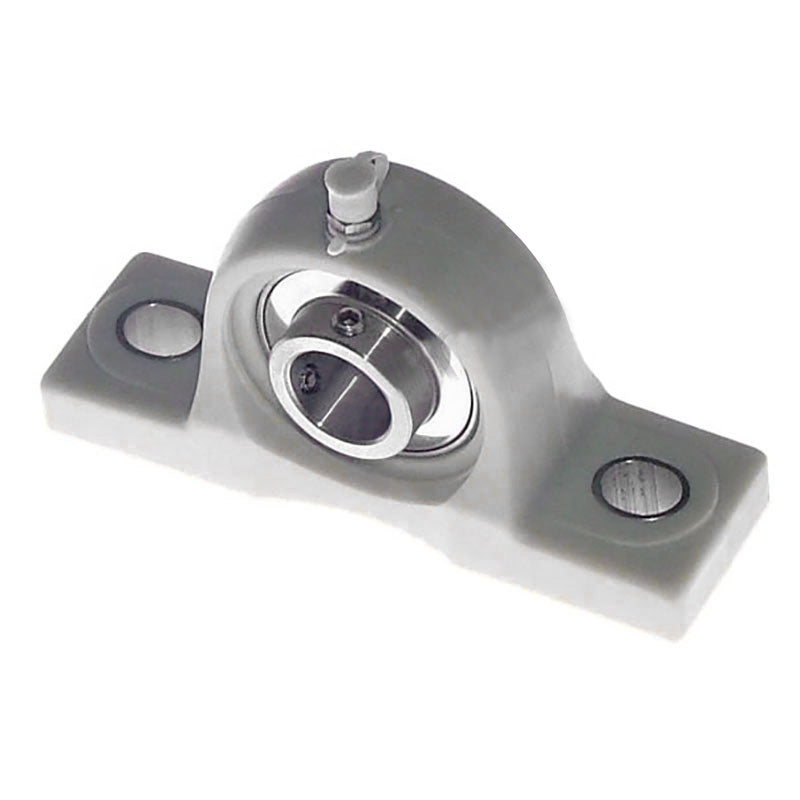

SUCPPL204-12 Imperial Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 3/4 inch Bore Stainless Insert
- Regular price
- $34.98 ex VAT
- Sale price
- $34.98
- Regular price
-
In stock
Quantity Price Breaks
3
$31.13
4
$29.38
9
$29.03
19
$28.68
49
$28.33
99
$27.98
499
$26.24
999
$25.89
1999
$25.54
2999
$25.19
4999
$24.49
SKU:
SUCP.PL.204-12
SUCPPL204-12 Imperial Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 3/4 inch Bore Stainless Insert
- Regular price
- $34.98 ex VAT
- Sale price
- $34.98
- Regular price
-
Description
|
UCP or NP Series Thermo-Plastic Plummer / Pillow Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Colour may vary. |
Technical
| d | = | 3/4 inch |
| h | = | 33.3mm |
| a | = | 127mm |
| e | = | 96mm |
| b | = | 38mm |
| s2 | = | 19mm |
| s1 | = | 13mm |
| g | = | 15mm |
| w | = | 62mm |
| B1 | = | 31mm |
| n | = | 12.7mm |
| Bolt | = | 10mm |
| Weight | = | 0.63 kg |
| Dynamic load | = | 1000 kgf |
| Static load | = | 630 kgf |
| Temperature Range | = | -35 to 102 deg C |
| Rec max speed | = | 7450 rpm |
