SKU: SUCF.PL.210

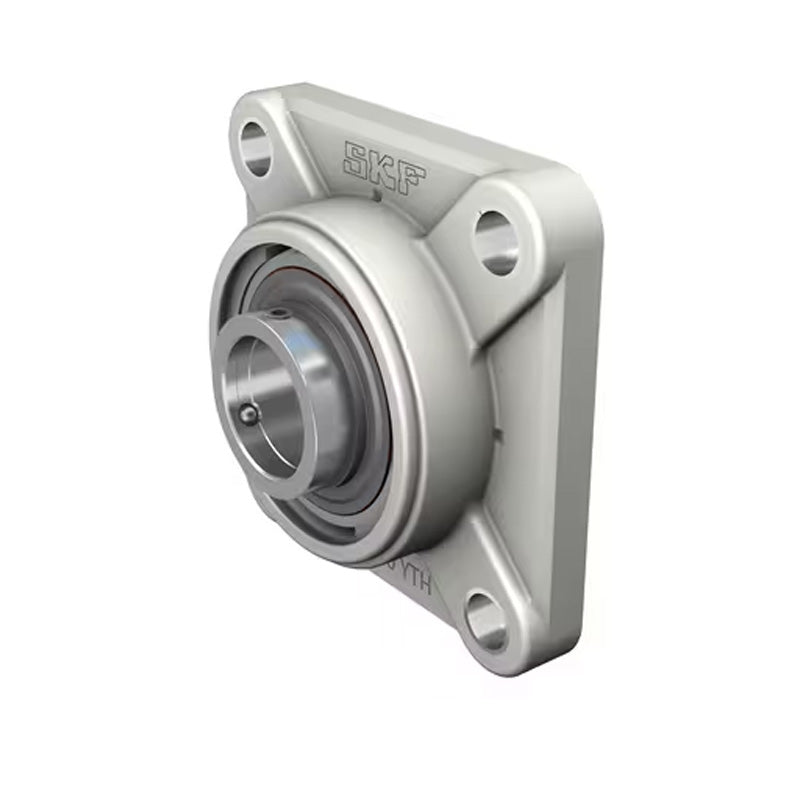

SUCFPL210 Metric Four Bolt Square Thermo Plastic Flange Housing with 50mm Bore Stainless Insert
- Regular price
- $211.47 ex VAT
- Sale price
- $211.47
- Regular price
-
In stock
Quantity Price Breaks
10+
$188.21
19+
$177.63
29+
$175.52
39+
$173.41
49+
$171.29
74+
$169.18
99+
$158.60
199+
$156.49
249+
$154.37
499+
$152.26
999+
$148.03
SKU:
SUCF.PL.210
SUCFPL210 Metric Four Bolt Square Thermo Plastic Flange Housing with 50mm Bore Stainless Insert
- Regular price
- $211.47 ex VAT
- Sale price
- $211.47
- Regular price
-
Description
|
UCFPL or PSF Series Thermo-Plastic 4 Bolt Square Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Colour may vary. |
Technical
| d | = | 50mm |
| a | = | 143mm |
| e | = | 111mm |
| i | = | 22mm |
| g | = | 18mm |
| L | = | 40mm |
| S | = | 16mm |
| Z | = | 54.6mm |
| Bi | = | 51.6mm |
| n | = | 19mm |
| Bolt | = | 16mm |
| Weight | = | 2.5 kg |
| Dynamic load | = | 2750 kgf |
| Static load | = | 2020 kgf |
| Temperature Range | = | -35 to 102 deg C |
| Rec max speed | = | 3400 rpm |
