SKU: SSUCP.215

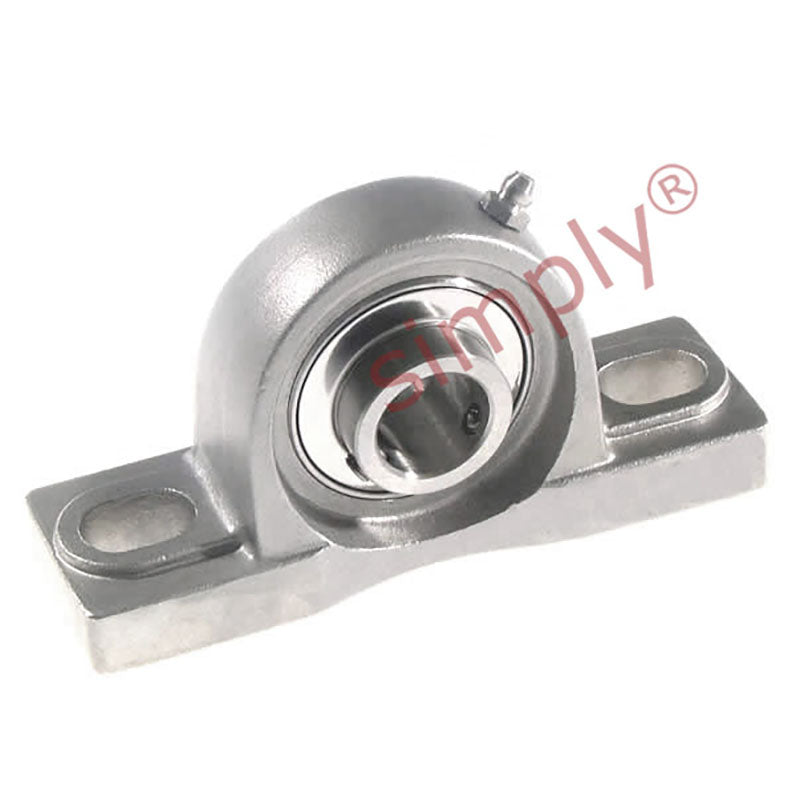

SSUCP215 Metric Stainless Steel Two Bolt Pillow / Plummer Block Housing with 75mm Bore Stainless Insert
- Regular price
- $575.42 ex VAT
- Sale price
- $575.42
- Regular price
-
Not in stock
Quantity Price Breaks
3
$512.12
4
$483.35
9
$477.60
19
$471.84
49
$466.09
99
$460.34
499
$431.57
999
$425.81
1999
$420.06
2999
$414.30
4999
$402.79
SKU:
SSUCP.215
SSUCP215 Metric Stainless Steel Two Bolt Pillow / Plummer Block Housing with 75mm Bore Stainless Insert
- Regular price
- $575.42 ex VAT
- Sale price
- $575.42
- Regular price
-
Description
|
UCP or NP Series Stainless Steel Plummer / Pillow Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the stainless steel housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved, exceptionally strong and durable Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
Technical
| d | = | 75mm |
| h | = | 82.6mm |
| a | = | 275mm |
| e | = | 217mm |
| b | = | 74mm |
| s2 | = | 31mm |
| s1 | = | 25mm |
| g | = | 28mm |
| w | = | 163mm |
| B1 | = | 77.8mm |
| n | = | 33.3mm |
| Bolt | = | 20mm |
| Weight | = | 7.6 kg |
| Dynamic load | = | 5190 kgf |
| Static load | = | 4190 kgf |
| Rec max speed | = | 2300 rpm |
