SSBFPL207 Metric Thermo Plastic Four Bolt Square Flange Housing with 35mm Bore Stainless Insert
SKU: SSBF.PL.207

SSBFPL207 Metric Thermo Plastic Four Bolt Square Flange Housing with 35mm Bore Stainless Insert

$74.81 ex VAT
$74.81
ex VAT

Description

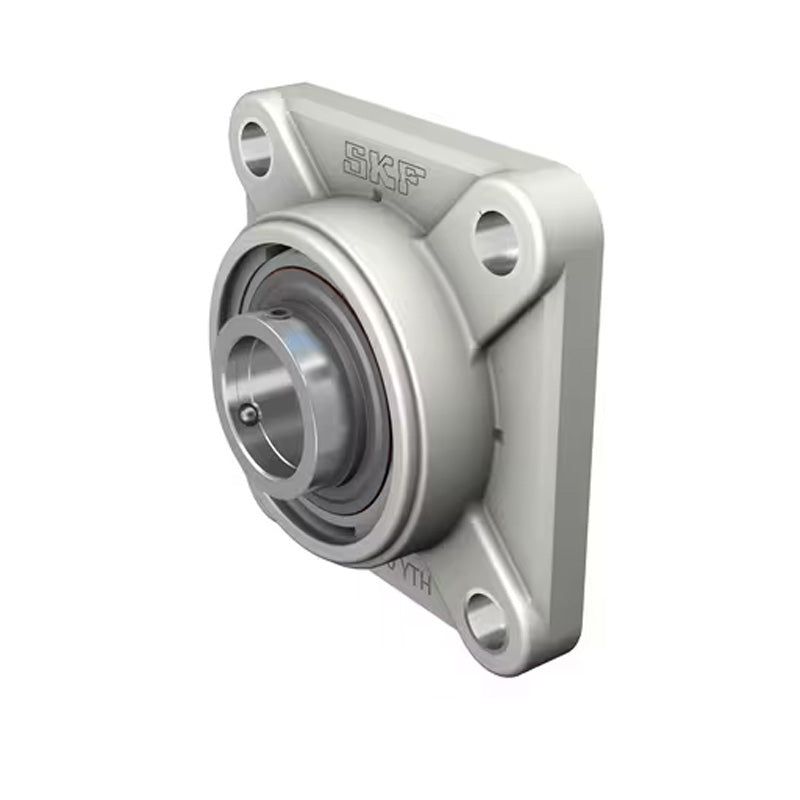

SSBFPL Thermo Plastic Four Bolt Square Flange Housing with Stainless Insert: Bearing unit with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti-crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 4 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved.

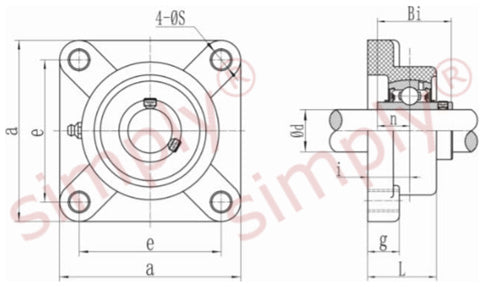

Technical

d = 35mm
a = 117mm
e = 92mm
g = 16mm
L = 35mm
s = 13mm
i = 22mm
Bi = 32mm
n = 17.5mm
Bolt = 12mm
Weight = 0.26kg
Temperature Range = -35 to 102 deg C
