SKU: SS.POS8L.EU

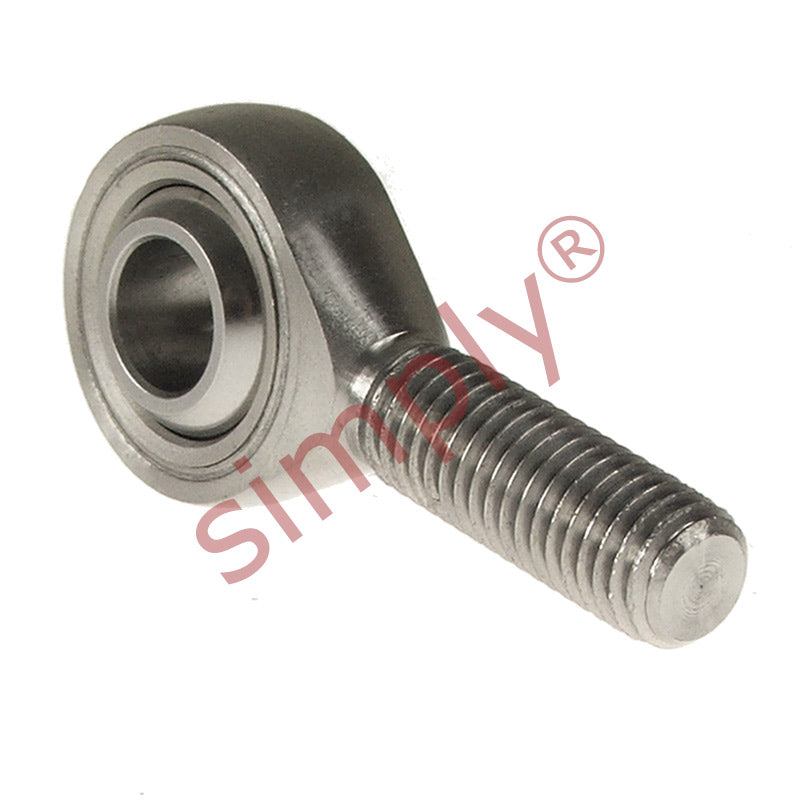

Budget SSPOS8L Left Hand Stainless Steel / PTFE Lined Plain Male Rod End 8mm Bore M8x1.25 Thread
- Regular price
- $35.75 ex VAT
- Sale price
- $35.75
- Regular price
-
In stock
Quantity Price Breaks
10
$31.82
19
$30.03
29
$29.67
39
$29.32
49
$28.96
74
$28.60
99
$26.81
199
$26.46
249
$26.10
499
$25.74
999
$25.03
SKU:
SS.POS8L.EU
Budget SSPOS8L Left Hand Stainless Steel / PTFE Lined Plain Male Rod End 8mm Bore M8x1.25 Thread
- Regular price
- $35.75 ex VAT
- Sale price
- $35.75
- Regular price
-
Description
|
Stainless Steel Maintenance Free Male Rod End with PTFE Liner: LEFT hand thread male rod end consisting of AISI 420 Stainless Steel body with an AISI 440C Stainless Steel ball running in a PTFE maintenance free liner captive in an AISI 304 Stainless Steel ball mount. Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE, maintenance free Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
Technical
| d | = | 8mm |
| B | = | 12mm |
| r1 | = | 0.3mm |
| C1 | = | 9mm |
| d1 max | = | 10.3mm |
| d2 | = | 22mm |
| d3 | = | M8x1.25 |
| h | = | 42mm |
| l1 | = | 25mm |
| l2 | = | 53mm |
| Ball diameter | = | 5/8 inch |
| Dynamic load Cr | = | 7.1 kN |
| Static load Cor | = | 8.8 kN |
| Max angle & | = | alpha |
| = | 14 | |
| Weight | = | 0.032 kg |
