SKU: SS.POS14.EU

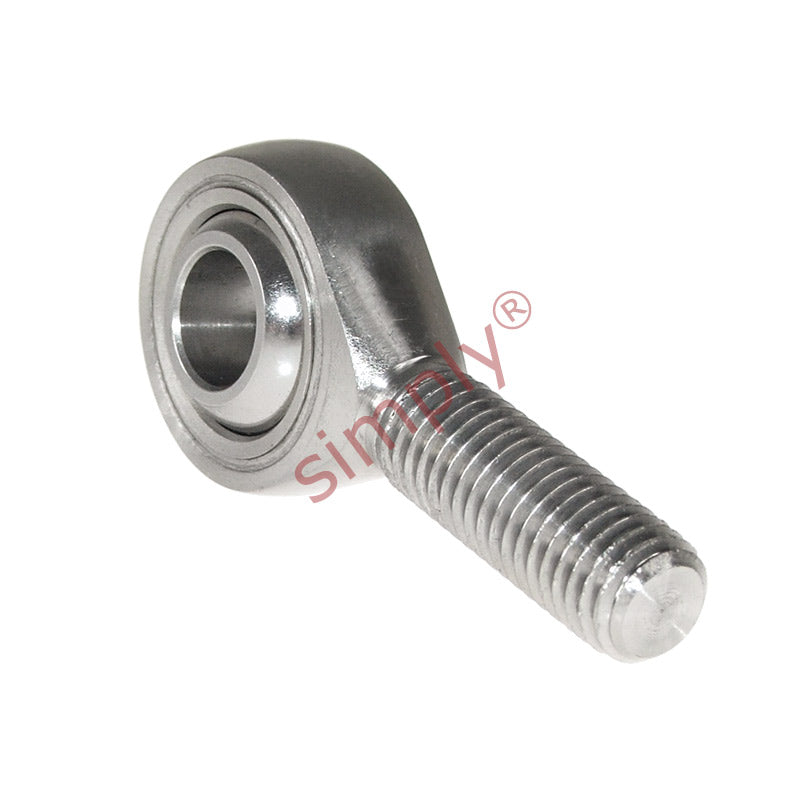

Budget SSPOS14 Right Hand Stainless Steel / PTFE Lined Plain Male Rod End 14mm Bore M14x2 Thread
- Regular price
- $70.15 ex VAT
- Sale price
- $70.15
- Regular price
-
In stock
Quantity Price Breaks
10
$62.43
19
$58.93
29
$58.22
39
$57.52
49
$56.82
74
$56.12
99
$52.61
199
$51.91
249
$51.21
499
$50.51
999
$49.11
SKU:
SS.POS14.EU
Budget SSPOS14 Right Hand Stainless Steel / PTFE Lined Plain Male Rod End 14mm Bore M14x2 Thread
- Regular price
- $70.15 ex VAT
- Sale price
- $70.15
- Regular price
-
Description
|
Stainless Steel Maintenance Free Male Rod End with PTFE Liner: Right hand thread male rod end consisting of AISI 420 Stainless Steel body with an AISI 440C Stainless Steel ball running in a PTFE maintenance free liner captive in an AISI 304 Stainless Steel ball mount. Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE, maintenance free Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
Technical
| d | = | 14mm |
| B | = | 19mm |
| r1 | = | 0.6mm |
| C1 | = | 13.5mm |
| d1 max | = | 16.8mm |
| d2 | = | 34mm |
| d3 | = | M14x2 |
| h | = | 60mm |
| l1 | = | 36mm |
| l2 | = | 77mm |
| Ball diameter | = | 1 inch |
| Dynamic load Cr | = | 17.1 kN |
| Static load Cor | = | 21.3 kN |
| Max angle & | = | alpha |
| = | 16 | |
| Weight | = | 0.126 kg |
