SKU: SS.PHS22.EU

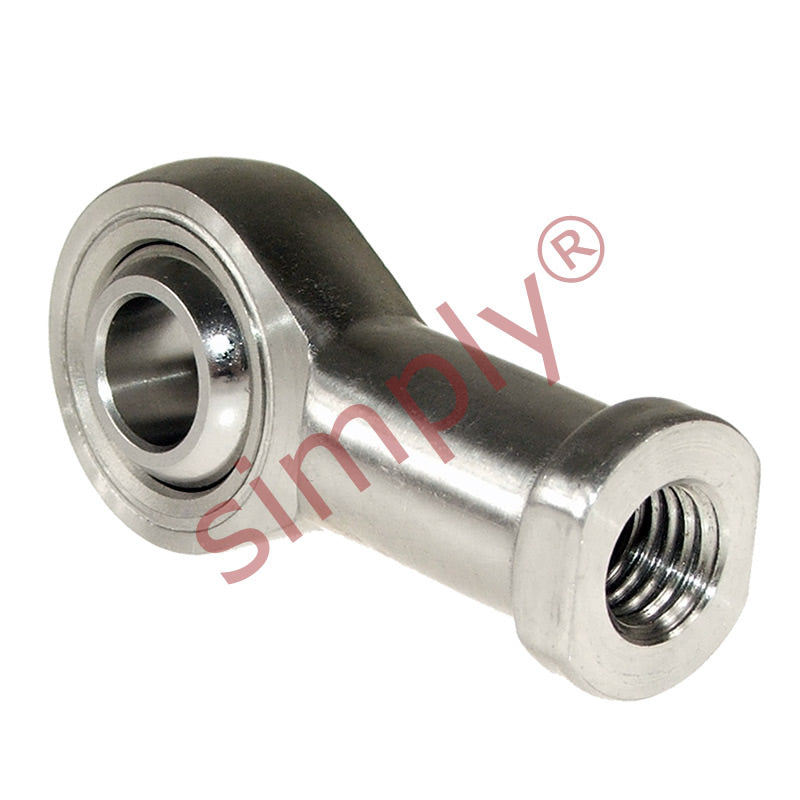

Budget SSPHS22 Right Hand Stainless Steel / PTFE Lined Plain Female Rod End 22mm Bore M22x1.5 Thread
- Regular price
- $146.64 ex VAT
- Sale price
- $146.64
- Regular price
-
Not in stock
Quantity Price Breaks
10
$130.51
19
$123.18
29
$121.71
39
$120.24
49
$118.78
74
$117.31
99
$109.98
199
$108.51
249
$107.05
499
$105.58
999
$102.65
SKU:
SS.PHS22.EU
Budget SSPHS22 Right Hand Stainless Steel / PTFE Lined Plain Female Rod End 22mm Bore M22x1.5 Thread
- Regular price
- $146.64 ex VAT
- Sale price
- $146.64
- Regular price
-
Description
|
Stainless Steel Maintenance Free Female Rod End with PTFE Liner: Right hand thread female rod end consisting of AISI 420 Stainless Steel body with an AISI 440C Stainless Steel ball running in a PTFE maintenance free liner captive in an AISI 304 Stainless Steel ball mount. Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE, maintenance free Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
Technical
| d | = | 22mm |
| B | = | 28mm |
| r1 | = | 0.6mm |
| C1 | = | 20mm |
| d1 max | = | 25.8mm |
| d2 | = | 50mm |
| d3 | = | M22x1.5 |
| h1 | = | 84mm |
| L3 | = | 43mm |
| L4 | = | 109mm |
| L5 | = | 12mm |
| d4 | = | 30mm |
| d5 | = | 37mm |
| S | = | 32mm |
| Ball diameter | = | 1-1/2 inch |
| Dynamic load Cr | = | 38.1mm |
| Static load Cor | = | 42.6mm |
| Max angle & | = | alpha |
| = | 15 | |
| Weight | = | 0.49 kg |
