SKU: SS-51210-EU
SS51210 Budget Stainless Single Thrust Ball Bearing 50x78x22mm
- Regular price
- $69.52 ex VAT
- Sale price
- $69.52
- Regular price
-
In stock
Quantity Price Breaks
10
$61.87
19
$58.40
29
$57.70
39
$57.01
49
$56.31
74
$55.62
99
$52.14
199
$51.44
249
$50.75
499
$50.05
999
$48.66
SKU:
SS-51210-EU
SS51210 Budget Stainless Single Thrust Ball Bearing 50x78x22mm
- Regular price
- $69.52 ex VAT
- Sale price
- $69.52
- Regular price
-
Description

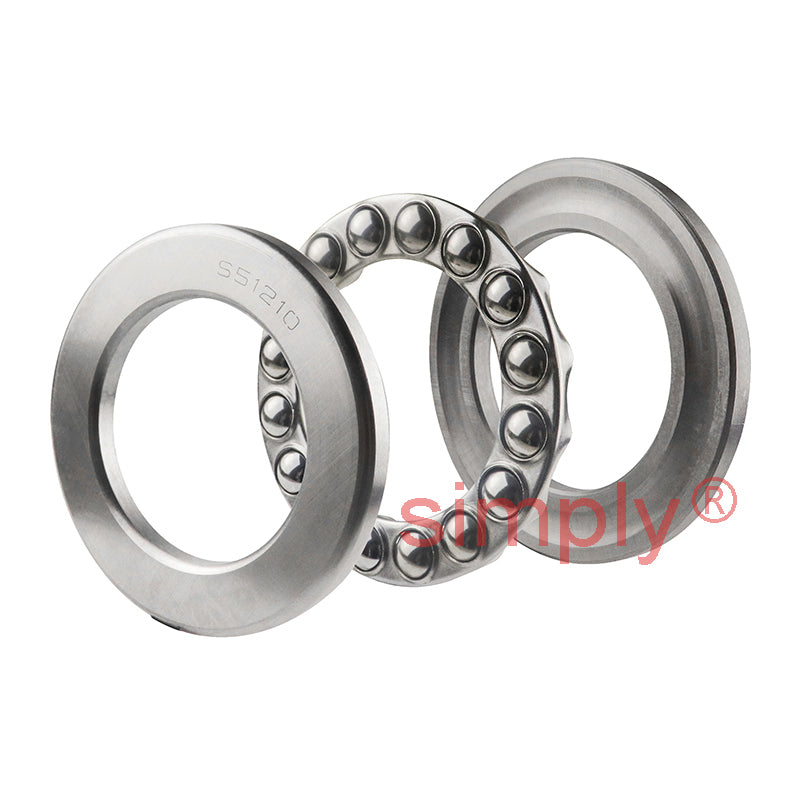

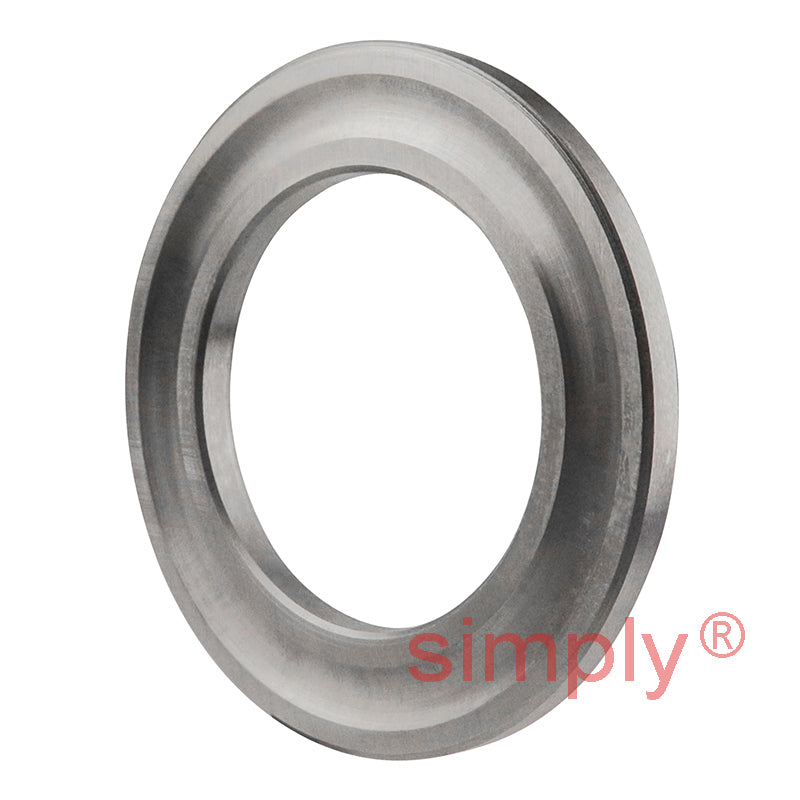

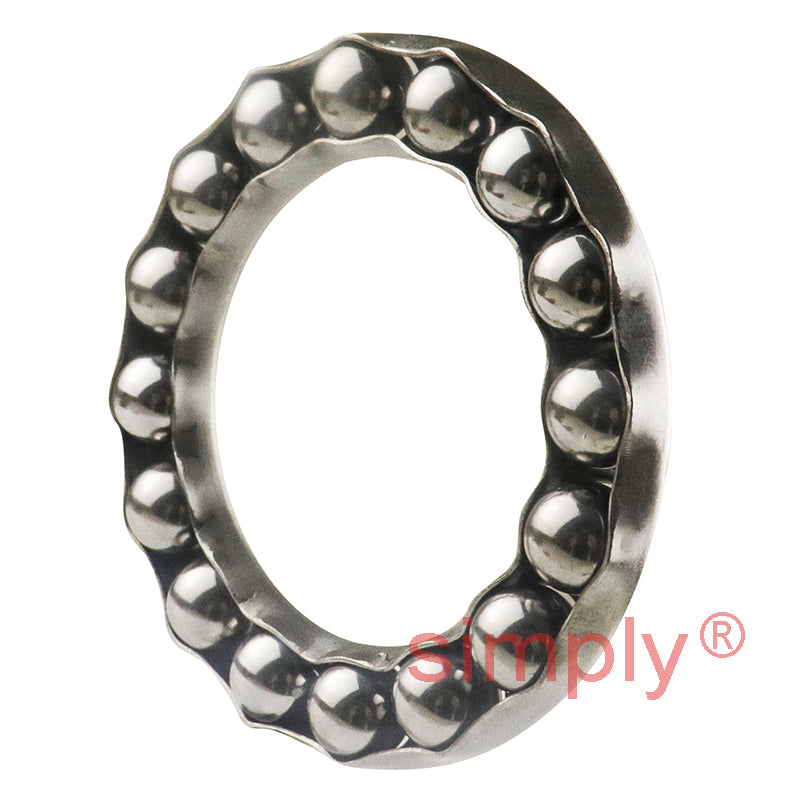

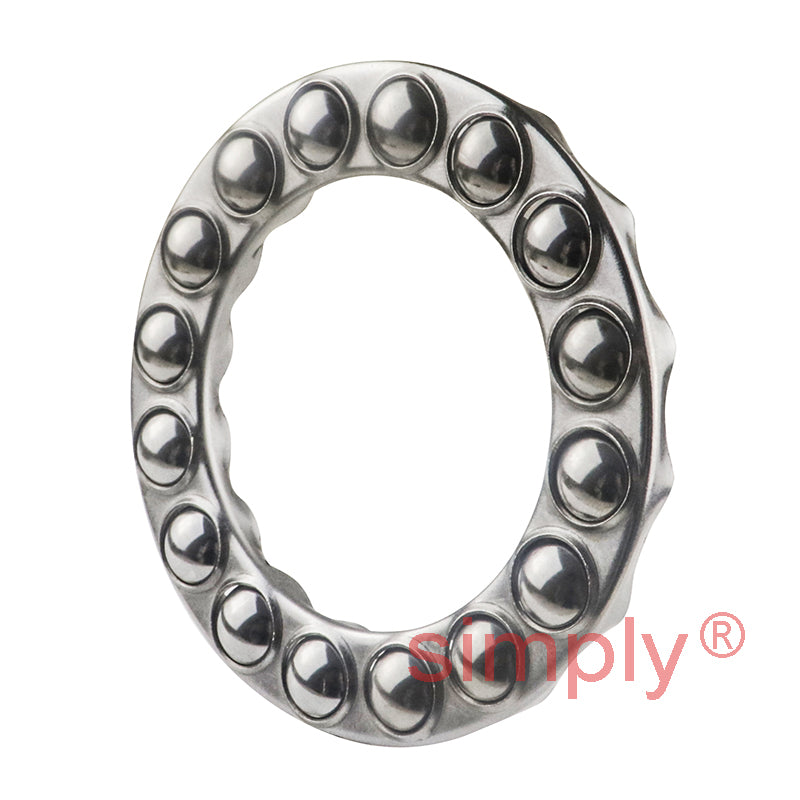

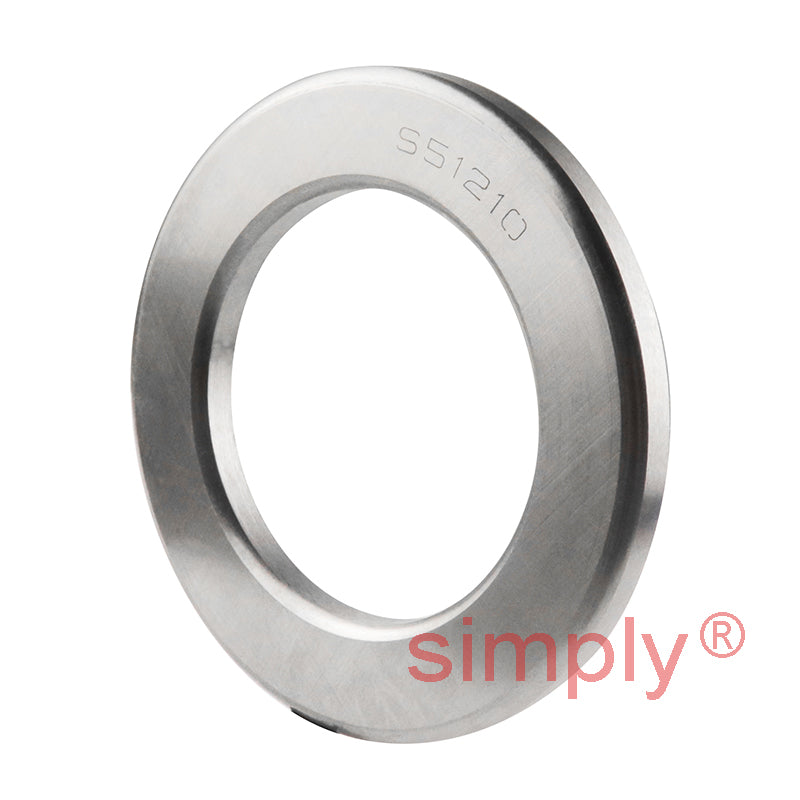

Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have angular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Technical
| d | = | 50mm |
| D | = | 78mm |
| H | = | 22mm |
| Dynamic load C | = | 49.4 kN |
| Static load Co | = | 116 kN |
| Fatigue load limit Pu | = | 4.3 kN |
| Minimum load factor A | = | 0.069 |
| Reference speed | = | 3400 rpm |
| Limiting speed | = | 4500 rpm |
| Weight | = | 0.37 kg |
| d1 | = | 78mm |
| D1 | = | 52mm |
| r1r2 min | = | 1mm |
| da min | = | 67mm |
| Da max | = | 61mm |
| ra max | = | 1mm |
