SKU: SMR.105.EZO

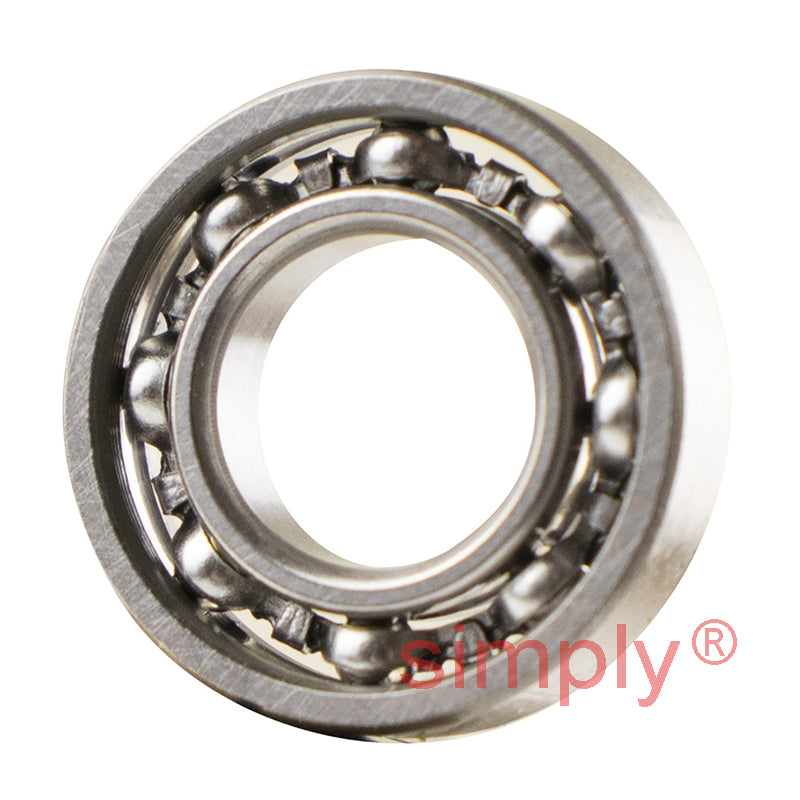

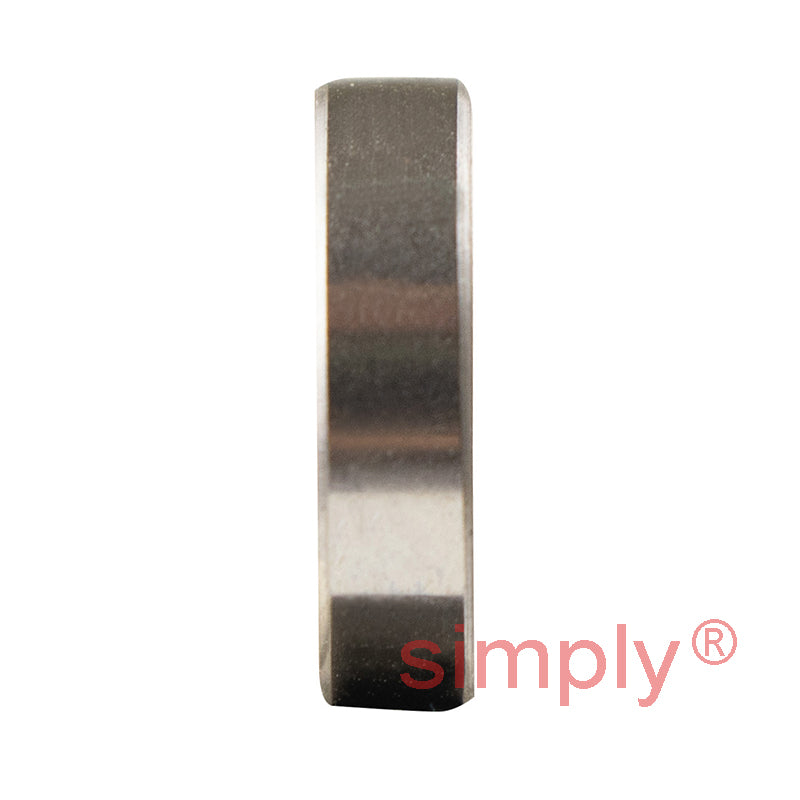

EZO SMR105 Stainless Steel Open Type Deep Groove Ball Bearing 5x10x3mm
- Regular price
- $7.60 ex VAT
- Sale price
- $7.60
- Regular price
-
In stock
Quantity Price Breaks
10+
$6.76
19+
$6.38
29+
$6.31
39+
$6.23
49+
$6.16
74+
$6.08
99+
$5.70
199+
$5.62
249+
$5.55
499+
$5.47
999+
$5.32
SKU:
SMR.105.EZO
EZO SMR105 Stainless Steel Open Type Deep Groove Ball Bearing 5x10x3mm
- Regular price
- $7.60 ex VAT
- Sale price
- $7.60
- Regular price
-
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Technical
| d | = | 5mm |
| D | = | 10mm |
| B | = | 3mm |
| r min | = | 0.15mm |
| Dynamic load C | = | 0.366 kN |
| Static load Co | = | 0.135 kN |
| Max speed | = | 60000 rpm |
| Mass | = | 0.01 kg |
