SKU: NUP2311ECP-SKF

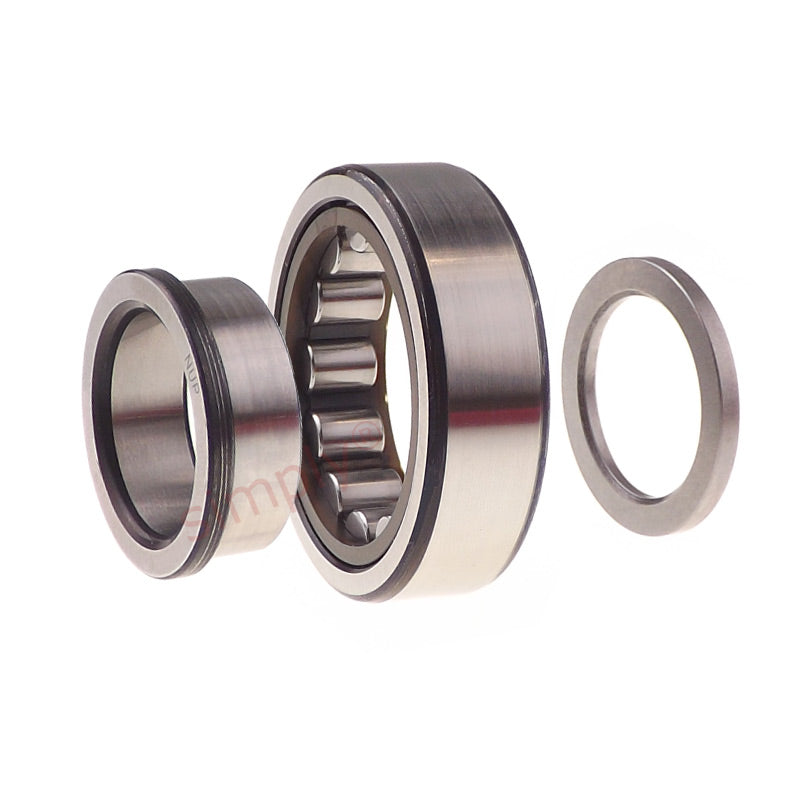

SKF NUP2311ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 55x120x43mm
- Regular price
- $445.48 ex VAT
- Sale price
- $445.48
- Regular price
-
Not in stock
Quantity Price Breaks
10
$396.48
19
$374.20
29
$369.75
39
$365.29
49
$360.84
74
$356.38
99
$334.11
199
$329.66
249
$325.20
499
$320.75
999
$311.84
SKU:
NUP2311ECP-SKF
SKF NUP2311ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 55x120x43mm
- Regular price
- $445.48 ex VAT
- Sale price
- $445.48
- Regular price
-
Description
|
SKF NUP Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the rollers are assembled, the inner raceway has one flange, the supplied none integral ring forms the other flange, enabling the ease of assembly and permitting axial location in both directions Benefits: Axial location, ease of assembly and fitting |
Technical
| d | = | 55mm |
| D | = | 120mm |
| B | = | 43mm |
| Dynamic load C | = | 232 kN |
| Static load Co | = | 232 kN |
| Fatigue load limit Pu | = | 30.5 kN |
| Reference speed | = | 6000 rpm |
| Limiting speed | = | 7000 rpm |
| Weight | = | 2.3 kg |
| Alt cage | = | ML |
| d1 | = | 77.5mm |
| D1 | = | 101mm |
| F,E | = | 70.5mm |
| r1r2 min | = | 2mm |
| r3r4 min | = | 2mm |
| da min | = | 66mm |
| db | = | 80mm |
| Da max | = | 109mm |
| ra max | = | 2mm |
| rb max | = | 2mm |
| kr | = | 0.25 |
