SKU: SILKAC14M-CDX

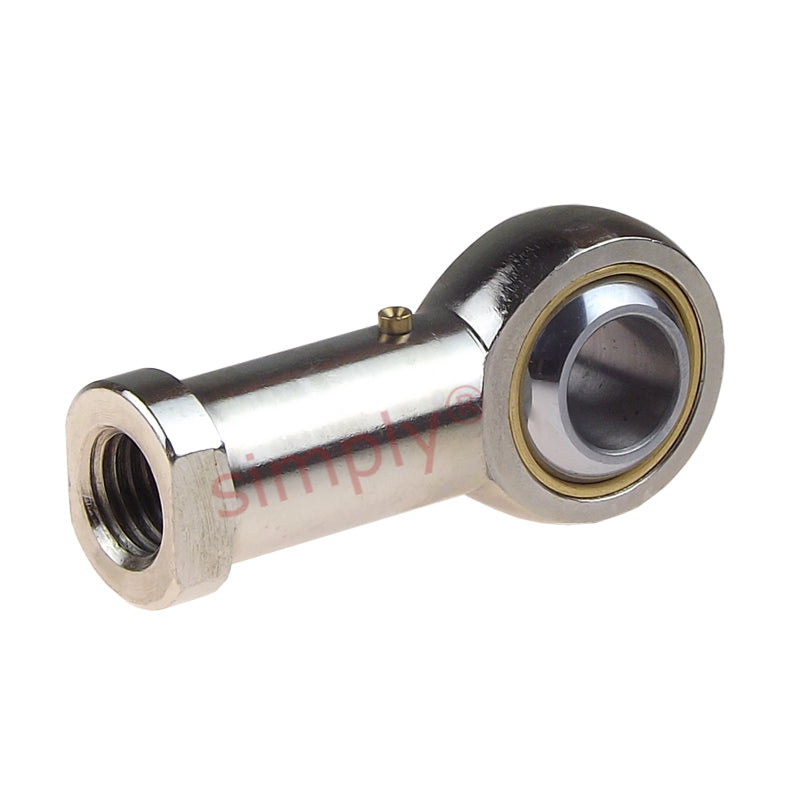

Codex SILKAC14M Left Hand Steel / Bronze Lined Plain Female Rod End M14 Thread
- Regular price
- $44.59 ex VAT
- Sale price
- $44.59
- Regular price
-
In stock
Quantity Price Breaks
10
$39.69
19
$37.46
29
$37.01
39
$36.56
49
$36.12
74
$35.67
99
$33.44
199
$33.00
249
$32.55
499
$32.10
999
$31.21
SKU:
SILKAC14M-CDX
Codex SILKAC14M Left Hand Steel / Bronze Lined Plain Female Rod End M14 Thread
- Regular price
- $44.59 ex VAT
- Sale price
- $44.59
- Regular price
-
Description
|
SIKAC..M Series Rod End Bearings:These rod end bearings comprise of sliding contact surfaces of steel against bronze. They are unsealed and although they are low maintenance they may require re-lubrication from time to time via the re lubrication point in the side of the head this will serve to extend it's life cycle. Operating temperatures are within -30deg C to +180 deg C. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Lower load carrying capacity compared to steel/steel rod ends, but more suitable for applications where lubricant starvation might occur. Benefits: Lower maintenance. |

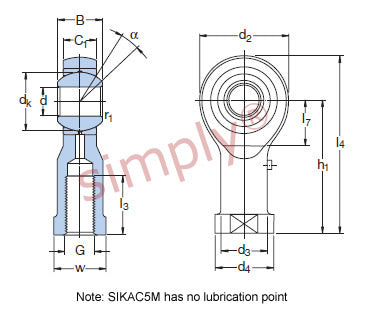

Technical
| d | = | 14mm |
| d2 max | = | 37mm |
| G | = | M14 |
| B | = | 19mm |
| C1 max | = | 13.5mm |
| h1 | = | 57mm |
| Max misalignment angle | = | 16 degrees |
| Dynamic load | = | 17 kN |
| Static load | = | 20.4 kN |
| dk | = | 25.4mm |
| d3 | = | 20mm |
| d4 max | = | 27mm |
| l3 min | = | 21mm |
| l4 max | = | 77mm |
| l5 | = | 8mm |
| l7 min | = | 18mm |
| r1 min | = | 0.3mm |
| w | = | 22mm |
| Weight | = | 0.16 kg |
